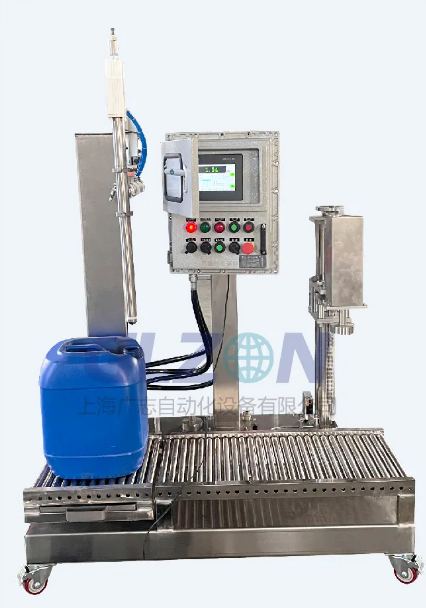

10-30L Semi- Automatic Glues Weighing and Filling Machine
2025-04-03 10:21:18
glzon
Introduction
Liquid filling machine is a highly automated packaging equipment, whose main function is to automatically fill liquid materials into predetermined weights. The liquid filling machine can effectively prevent material overflow during the filling process, effectively prevent material pollution to the environment, and provide effective labor protection for operators. Its system works stably and reliably, with simple operation and precise filling. The filling machine mainly consists of a filling gun device, PLC system control part, weighing system, filling rack, conveying equipment, etc.
Main structure and working principle
1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.
2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.
3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).
4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.
3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).
4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
-
