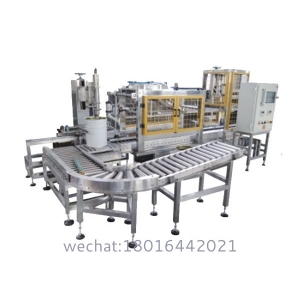

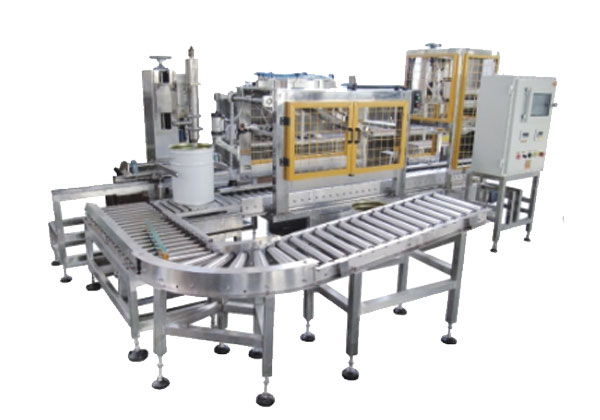

20L U-shaped Fully Automatic Varnishes Can Filling Line
金彩汇Automatic 20L varnish can filler: 150 cans/hour, ±0.1% accuracy. ATEX certified, 99.5% VOC recovery. 40% space saving.
- Brand： glzon
- Model： GZM
20L U-shaped Fully Automatic Varnishes Can Filling Line
Model: UF-20 Pro
Manufacturer: Shanghai Guangzhi Automation
Product Overview
The UF-20 Pro U-Shaped Filling Line revolutionizes varnish packaging with its space-efficient U-conveyor design and laboratory-grade precision. Engineered for 5-20L cans, it achieves ±0.1% filling accuracy at 150 cans/hour while ensuring >99.5% VOC recovery and ATEX Zone 1 compliance. Ideal for solvent-based, UV-curable, and high-gloss varnishes in furniture, automotive, and industrial coating industries.
Technical Specifications
Parameter | Specification |
|---|---|
Filling Range | 5-20L (±0.1%) |
Output | 金彩汇150 cans/hour |
Viscosity Range | 50-50,000 cP |
Accuracy | 金彩汇Coriolis mass flow (±0.1%) |
Explosion Proof | 金彩汇ATEX Zone 1 / IECEx Certified |
Changeover Time | <3 min (pneumatic quick-change) |
VOC Recovery | Closed-loop system (>99.5%) |
Material Contact | 316L SS + PTFE coating |
Power | 380V/50Hz, 15kW |
N₂ Consumption | 金彩汇35 L/min @ 4bar |
Footprint (L×W) | 6500×2400mm (40% space saving vs linear) |
Certifications | 金彩汇EHEDG, CE EN 415, ISO 9001, FDA 21 CFR 175.300 |
Core Innovations
1. U-Shaped Conveyor System
90° Spill-Free Turning: Patented guide rails prevent can tipping (<2° deviation).
Space Optimization: 40% smaller footprint vs traditional linear lines.
2. Zero-Emission Filling
Dual-Seal Nozzles: Residual varnish ≤0.05ml + VOC emission <10ppm (EPA Method 21).
Nitrogen Blanketing: O₂ levels <0.5% in headspace.
3. Smart Control Ecosystem
AI Viscosity Compensation: Auto-adjusts flow for temperature/pigment changes (±0.1% stability).
Laser Can Alignment: ±0.5mm positioning accuracy for deformed cans.
OPC UA Integration: Real-time MES/ERP connectivity with batch reports.
Performance Comparison
Metric | Traditional Line | UF-20 Pro | Improvement |
|---|---|---|---|
Solvent Loss | 8-12% | <0.5% | ↓92% |
金彩汇Daily Output (8h shift) | 800 cans | 1,200 cans | ↑50% |
Manual Interventions | 15/hour | 0.2/hour | ↓98.7% |
金彩汇VOC Treatment Cost | $8.5/can | $0.9/can | ↓89% |
Industry Applications
► Furniture Coatings
Pantone®-calibrated color filling (ΔE<0.4).
EHEDG-compliant surfaces for wood varnishes.
► Automotive Clearcoats
Nitrogen inerting prevents skinning.
MIL-PRF-85285 compliance for aerospace coatings.
► Industrial Varnishes
Heated path (5-50°C) for epoxy stability.
金彩汇Anti-settling pulsed flow for metallic pigments.
Certifications
► ATEX 2014/34/EU (Category 1) ► IECEx IEC 60079 Series ► EHEDG Type EL Class I ► FDA 21 CFR 175.300 (Indirect food contact) ► ISO 9001:2015
Service Commitment
Service | Standard | Premium |
|---|---|---|
Spare Parts Delivery | ≤72 hrs (global ports) | 金彩汇≤48 hrs (expedited) |
Remote Support | 24/7 IIoT diagnostics | AR-guided troubleshooting |
Precision Warranty | 金彩汇±0.1% for 2 years | Lifetime calibration service |
