Automated dual-nozzle filling and capping system for inkjet inks. Features synchronized gravimetric accuracy, ΔE<0.3 color consistency, ATEX compliance, and 60 bottles/hour throughput.

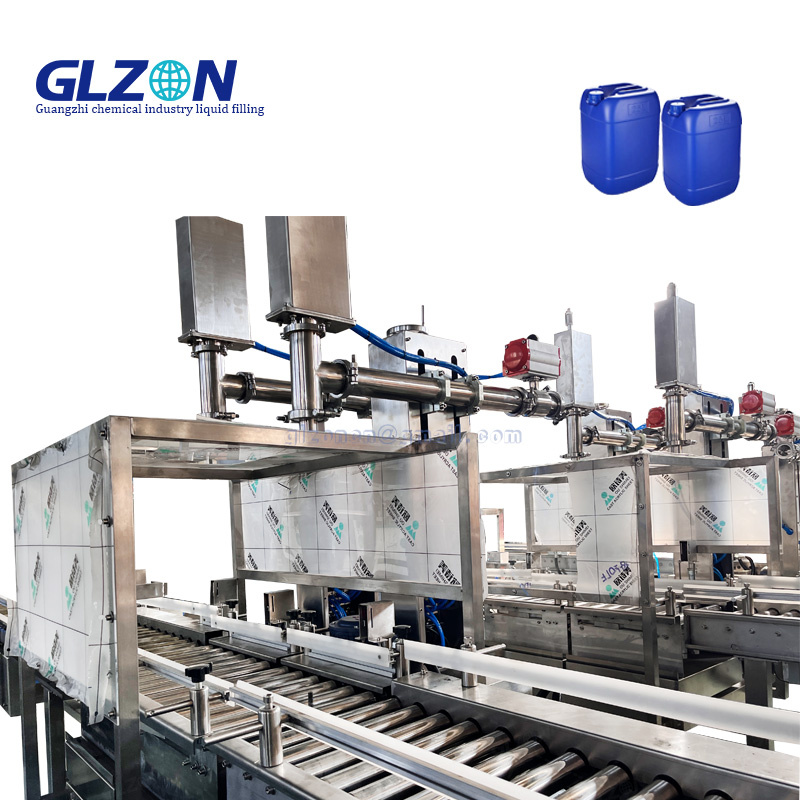

Dual-Nozzle Gravimetric Inkjet Ink Filling & Capping System
Precision Synchronized Filling • 60 Bottles/Hr • ±0.05% Accuracy • ATEX Zone 22 • Zero Cross-Contamination
| Parameter | IF-8100 (Standard) | IF-8200X (ATEX) | IF-8300P (High-Purity) |
|---|---|---|---|
| Capacity | 50ml-10L (±0.05%) | 50ml-10L (±0.08%) | 50ml-10L (±0.03%) |
| Throughput | 60 Bottles/Hr | 55 Bottles/Hr | 50 Bottles/Hr |
| Nozzle Synchronization | ±0.02% Variance | ±0.05% | ±0.01% |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 5-50,000 cP | 10-30,000 cP | 1-100,000 cP |
| Filling Technology | Coriolis Mass Flow + Servo Piston<br>Flow Rate: 120L/min/Nozzle<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Cap Press Station | TorqueMaster™:<br>• 0.5-20 N·m Range<br>• ±0.5% Accuracy<br>• Vision-Guided Thread Detection | Magnetic Clutch System | Servo Stepper Motor |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Color Consistency | In-line Spectrophotometer<br>ΔE<0.3 (CIELab)<br>±0.5% Batch Variance | Same | Laser Diffraction Sensor |
| Contamination Control | Isolated Fluid Paths<br>• Air-Knife Purge (40bar)<br>• <0.1ppm Carryover<br>• Color-Coded Quick-Change | VHP Sterilization | Ultra-Sonic Cleaning |
| Static Dissipation | Ionized Air Curtain<br>10⁶ ions/cm³ Output<br><0.1kV Surface Charge | SIL-2 Certified | Conductive Path (<10⁵ Ω) |
| Power | 220V/50Hz, 3.5kW | 24VDC Ex ia | 220V/50Hz, 3.0kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 175.300 |
Performance Validation:
| Ink Type | Viscosity | Nozzle 1 Accuracy | Nozzle 2 Accuracy | ΔE Variance |
|---|---|---|---|---|
| Dye-Based Ink | 3 cP | ±0.03% | ±0.04% | 0.21 |
| Pigment Ink | 15 cP | ±0.04% | ±0.04% | 0.18 |
| UV-Curable Ink | 25,000 cP | ±0.07% | ±0.06% | 0.25 |
| Component | Technology | Precision |
|---|---|---|
| Vision System | 5MP Camera + AI Thread Detection | ±0.1° Alignment |
| Torque Sensor | Nanoscale Strain Gauge | ±0.3% Accuracy |
| Defect Rejection | Spectral Analysis | 99.99% Accuracy |
1. Bottle Loading → 2. Dual-Nozzle Filling (±0.05%) → 3. Air-Knife Purge → 4. Cap Orientation → 5. Torque-Controlled Capping (±0.5%) → 6. Seal Integrity Test → 7. Laser Coding
Cycle Time金彩汇: 60 seconds/batch (2 bottles)
Precision & Efficiency
► Nano-Synchronization: | **Technology**| **Performance**| |-------------------------|------------------------| | Servo Response Time | 0.1ms| | Flow Matching| <0.02% Variance | | Temp Compensation| ±0.1°C PID Control| ► Zero-Contamination Architecture: 1. Isolated Material Paths 2. 40bar Air-Knife Purge 3. <0.1ppm Carryover Guarantee ► Industrial Reliability: - Tungsten Carbide Nozzles (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF
► ATEX 2014/34/EU Zone 22 ► FDA 21 CFR 175.300 ► ISO 9001:2015
Epson Industrial Inkjet Facility:
"After implementing IF-8200X:
Output: 25 → 60 Bottles/Hr (+140%)
Color Variance: ΔE>0.8 → ΔE<0.2
Cap Defects: 2.1% → 0.05%
ROI Period: 4 months"
