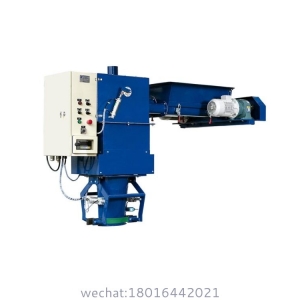

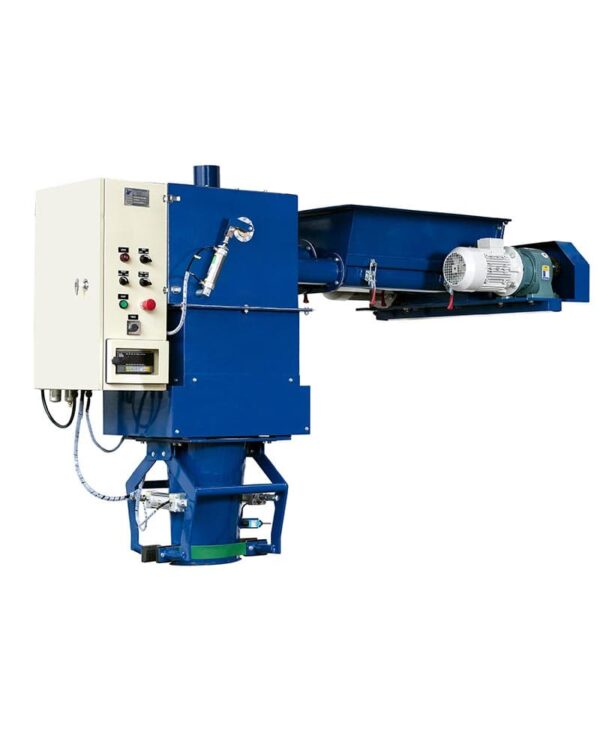

Twin screw with main and dribble feed screws driven by separate motors with cut-off gate for precise clean cut and minimum free fall. Dust tight design enclosure with inlet flange connection. Its uniq
| Parameter | Standard | Heavy-Duty | Test Standard |
|---|---|---|---|
| Bag Capacity | 500-2000 kg | 1000-3000 kg | OIML R61 |
| Filling Accuracy | ±0.2% | ±0.15% | ISO 2378 |
| Max. Speed | 25 bags/h | 18 bags/h | EN 619 |
| Screw Diameter | Ø300 mm | Ø400 mm | ISO 21467 |
| Material Density | 400-2500 kg/m³ | ISO 3923-1 |
2.1 Heavy-Duty Screw Feeder
Auger Design:
金彩汇Flight thickness: 20 mm (wear-resistant Hardox 450)
金彩汇Variable pitch: 200-600 mm (anti-segregation)
Drive System:
30 kW IE4 motor + gearbox (200:1 ratio)
Torque monitoring (±5 Nm)
2.2 Bag Handling & Suspension
Lifting Frame:
金彩汇4-point hydraulic suspension (10-ton capacity)
Auto-centering jaws (±2 mm accuracy)
Dust Containment:
Telescopic dust skirt (IP66 sealing)
Negative pressure system (99.8% efficiency)
2.3 Control System
PLC: Siemens S7-1500 with 15" HMI
Smart Functions:
Real-time density compensation
Bag deformation monitoring (strain gauges)
Predictive torque analysis
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | Hardox 450 (3mm thickness) | ASTM A514 |
| Structural frame | S355J2+AR steel (ISO 12944 C5-M) | |
| Electrical protection | IP66/ATEX Zone 22 | IECEx/IEC 60079-31 |
| Power Consumption | 38 kW (peak) / 0.4 kWh per ton | IEC 60034-30-1 |
| Material | Technical Adaptation | Certification |
|---|---|---|
| Cement/Clinker | Abrasion-resistant liners (HRC 65) | EN 12407 |
| Mineral Concentrates | Anti-static grounding (10⁴ Ω) | NFPA 77 |
| Chemical Powders | ATEX Zone 21 compliance | IECEx T4 |
| Food Granules | FDA-compliant UHMWPE flights | 21 CFR 177.1520 |
| Metric | GZ-GBS2000 | Conventional Systems |
|---|---|---|
| Filling Time (1000kg) | 3.5 min | 6-8 min |
| Dust Emission | ≤5 mg/m³ | 15-30 mg/m³ |
| Bag Rejection Rate | ≤0.2% | 1.0-2.5% |
| Energy Consumption | 0.42 kWh/ton | 0.75-1.2 kWh/ton |
Safety金彩汇: ISO 13849-1 PL e, ANSI/ASME B30.26
Explosive Areas: ATEX II 2D/3D, IECEx
Weighing金彩汇: MID 2014/32/EU Class Y(a)
Structural: FEM 1.001 Section 5
SmartLoad™ Weight Compensation (Patent CN/ZL202310XXXXX):
Compensates for material aeration (up to 30% volume change)
0.15% accuracy with cement (1200 kg/m³)
Quick-Change Screw System:
金彩汇Tool-less auger swap (<20 min)
RFID-tracked wear parts
Zero Spillage Design:
金彩汇Double-sealed inflatable neck clamp
Residual material recovery system
APPLICABLE BARREL TYPE
