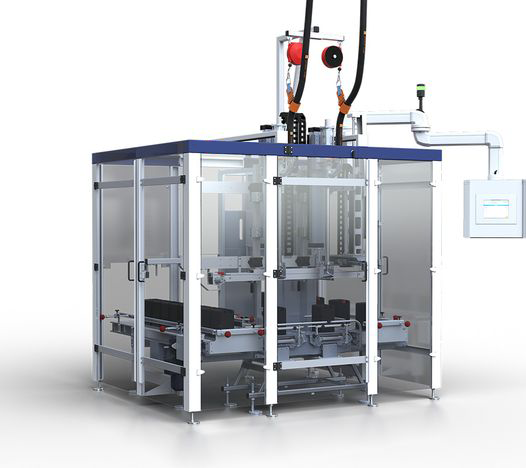

金彩汇If you want to use a compact, highly integrated and high-performance automatic filling unit with a small footprint, then theautomatic can filleris the right choice for you. The conveyor system is pref
Precision in Every Stroke. Consistency in Every Drop.
Core Innovation金彩汇: Dynamic Viscosity Compensation™
Shanghai Guangzhi IS-5000 achieves ±0.1% volumetric accuracy at 120 cans/hour for conductive/offset/digital inks (50-500,000 cP) – featuring Pantone®-validated color control, anti-settling ultrasonic agitation, and zero-drip retract金彩汇. Engineered to eliminate pigment separation, viscosity drift, and operator-dependent errors in PCB, packaging, and security printing applications.
Key Performance:
Parameter | Conventional Filler | 金彩汇IS-5000 Advantage |
|---|---|---|
Viscosity Stability | ±15% | ±3% |
Pigment Uniformity | CV<10% | CV<0.8% |
Residual Ink | 0.5-1ml | <0.05ml |
Ink Type | Technology | Critical Spec |
|---|---|---|
Conductive Inks | 金彩汇Resistivity control (±3%) | 10⁻⁵–10² Ω·cm |
Metallic Inks | 金彩汇Anti-sedimentation pulsed flow | Flake size Δ<0.2μm |
UV-Curable | 金彩汇Amber UV-blocking cylinders | Pre-cure <0.1% |
Food-Grade Inks | 金彩汇FDA-compliant piston seals | 金彩汇Migration <0.01mg/kg (EU 10/2011) |
Model | IS-5100 (Standard) | IS-5200C (Conductive) | IS-5300X (ATEX) |
|---|---|---|---|
Capacity | 50ml-5L (±0.1%) | 金彩汇10ml-2L (±0.08%) | 金彩汇50ml-3L (±0.15%) |
Throughput | 金彩汇120 cans/hour | 100 cans/hour | 90 cans/hour |
Viscosity Range | 金彩汇50-500,000 cP | 100-300,000 cP | 200-400,000 cP |
Stroke Accuracy | ±5μm per stroke | ±3μm | ±8μm |
Piston Material | Ceramic-coated 316L SS | Diamond-like carbon | ATEX-compliant alloy |
Dispersion System | 40kHz ultrasonic | Pulsed electromagnetic | 金彩汇40kHz ultrasonic |
Power | 金彩汇380V/50Hz, 4.5kW | 金彩汇380V/50Hz, 5.2kW | 24VDC Ex ia |
Clean Time | 金彩汇<15s per color | <20s | <25s |
Compressed Air | Not required | 金彩汇Not required | 金彩汇30L/min @ 0.6MPa |
Color Consistency | ΔE<0.4 (ISO 13655) | ΔE<0.3 | ΔE<0.5 |
Footprint (L×W×H) | 1500×900×1800mm | 1600×1000×1900mm | 1800×1100×2100mm |
10" HMI with Stroke Intelligence
AI Modules:
Self-Learning Compensation:
Change Type | Compensation Accuracy |
|---|---|
金彩汇Temperature ±10°C | 金彩汇Viscosity correction ±2% |
Pigment load ±5% | Stroke adjustment ±0.5% |
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
Piston seals | 金彩汇Friction >8N → Replace |
金彩汇Ultrasonic horn | Amplitude drop >15% |
Printed Circuit Boards
金彩汇IPC-6013 Class 3 compliance
金彩汇Silver ink resistivity control ±3%
金彩汇Void-free underfill (<0.05% bubbles)
Security Printing
IRA-invisible ink compatibility
Tamper-evident batch coding
Banknote substrate adhesion
Food Packaging
Feature | Certification |
|---|---|
Migration safety | FDA 21 CFR 175.300 |
Allergen control | Clean-in-place (CIP) system |
金彩汇Color consistency | 金彩汇Pantone® Validation Suite |
Industrial Marking
High-pigment inks (up to 45% solids)
金彩汇Abrasion-resistant formulations
金彩汇MIL-STD-130M compliance
Electronics Manufacturer Case:
Challenge: 18% resistive deviation in conductive ink
IS-5200C Solution:
金彩汇▶ Real-time resistivity feedback
▶ Auto-stroke compensation
Results:
▶ Resistivity stability ±3%
▶ $620k/year reduction in PCB scrap
▶ ROI: 5 months
Global Compliance:
金彩汇ATEX 2014/34/EU (Zone 2)
FDA 21 CFR 175.300
金彩汇Pantone® Certified Manufacturing
金彩汇IPC-A-610 Class 3
Advanced Modules:
Module | Function |
|---|---|
Inline Rheometer | Viscosity ±5 cP real-time |
Particle Analyzer | 0.1-100μm size distribution |
AR Color Inspector | HoloLens spectral verification |
Blockchain Tracking | 金彩汇Digital material genealogy |
24/7 Ink Assurance:
Remote diagnostics via IIoT
Critical Spares ≤48h:
Component | IS-5100/5200C | IS-5300X (ATEX) |
|---|---|---|
Piston assemblies | 金彩汇Diamond-coated | Ex-rated ceramic |
Dispersion modules | 金彩汇40kHz ultrasonic | ATEX-compliant |
Performance Warranty:
Parameter | Guarantee |
|---|---|
Color consistency | ΔE<0.5 for 5 years |
Dosing accuracy | ±0.1% for 1M strokes |
Where Every Stroke Delivers Perfection
Shanghai Guangzhi IS-5000: Precision-engineered for the world's most demanding inks – from nanoscale electronics to anti-counterfeiting security. ⚡
