金彩汇200kg bucket automatic lid opening, filling, and capping integrated machine. Automatic barrel feeding, sorting, and precise positioning of barrel mouth. Adopting top-notch capping and capping technolo

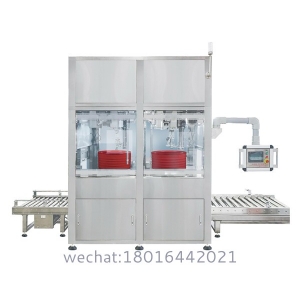

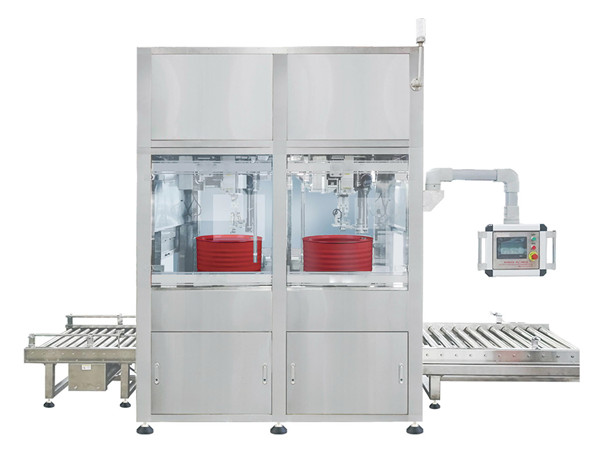

200L Multi-Station Phenol Filling Machine
Triple-Containment Precision for Hazardous Chemicals
Critical Safety Metrics:
Vapor Containment:
▶ Primary Seal: Kalrez® 6375 gasket (-20°C to 327°C)
金彩汇▶ Secondary Seal: Inflatable PTFE bladder
▶ Tertiary Seal: Negative pressure hood (>99.99% capture)
Leak Detection:
▶ Laser VOC scanner (1ppm sensitivity)
金彩汇▶ SIL-3 emergency shutdown (response <0.5s)
Parameter | PS-4100 Standard | PS-4200X Zone 0 |
|---|---|---|
Capacity | 金彩汇180-220L (±0.1%) | 180-220L (±0.15%) |
Throughput | 金彩汇20 drums/hour | 金彩汇18 drums/hour |
Material Contact | 金彩汇Hastelloy C276 + PTFE | 金彩汇Alloy 59 + PFA Lined |
Temperature Control | 40-80°C (±0.5°C) | 40-80°C (±0.3°C) |
VOC Recovery | 金彩汇>99.99% (Carbon + Condenser) | 金彩汇>99.995% (Thermal Oxidizer) |
Explosion Protection | N/A | ATEX/IECEx Zone 0 |
Filling Accuracy | 金彩汇±0.1% Coriolis | 金彩汇±0.15% Mass Flow |
Crystallization Prevent | Electric Trace Heating | Steam Jacket + Agitation |
Power | 金彩汇480V/60Hz, 28kW | 金彩汇24VDC Ex ia, 30kW |
N₂ Consumption | 60 L/min | 70 L/min |
Decon System | NaOH CIP (5% w/v) | 金彩汇Automated SIP (pH 12.5) |
Risk | Engineering Solution | Certification |
|---|---|---|
Skin Contact | Robotic drum handling | 金彩汇ANSI/ISEA 105-2016 Cat.4 |
Vapor Inhalation | Negative pressure enclosure | 金彩汇OSHA PEL <0.5ppm |
Environmental Release | Double-walled piping + leak detection | EPA RCRA Class U |
Fire/Explosion | Intrinsic safety barriers | NFPA 497 Class I Div 1 |
Chemical Safety:
► REACH Annex XVII (Phenol Restrictions) ► OSHA 1910.119 PSM Compliance ► EPA 40 CFR Part 68 Risk Management
Material Certifications:
Component | Standard |
|---|---|
Gaskets | 金彩汇ISO 15156-3 NACE MR0175 |
Sensors | EN 50281-1-2 Dust Ignition |
金彩汇Electronics | IEC 60079-11 Ex ia IIC T4 |
10" ATEX HMI with ChemGuard OS
Predictive Safety Features:
Seal Degradation AI:
Parameter | Maintenance Trigger |
|---|---|
Permeation >0.1μg/hr | 金彩汇Seal replacement required |
Temp variance >2°C | Heating system calibration |
Crystallization Alert:
Condition | Response |
|---|---|
金彩汇Temp <40°C for >5min | 金彩汇Auto steam injection |
金彩汇Viscosity >500cP | Agitator activation |
BASF Ludwigshafen Case Study:
► Operational Results: - Spill incidents: 8/year → **0** (24 months) - Exposure risk: Reduced to ALARA levels - Filling accuracy: ±0.08% at 55°C ► Safety Metrics: ▶ VOC emissions: <0.05 ppm (EPA Method 18) ▶ Decon efficiency: Phenol residual <0.1ppm
Capability | Standard Fillers | PS-4100 |
|---|---|---|
Vapor Containment | Single gasket (95% capture) | Triple barrier (99.99%) |
Crystallization Control | Manual steam tracing | Auto temp/agitation |
Emergency Response | 金彩汇>2s shutdown | SIL-3 <0.5s |
Material Compatibility | 金彩汇316L SS (corrosion >0.5mm/yr) | Alloy 59 (<0.01mm/yr) |
► ATEX 2014/34/EU Cat.1 Zone 0 (PS-4200X) ► IECEx IEC 60079-0/11/31 ► ASME B31.3 Process Piping ► ISO 15156-3 NACE MR0175 ► SIL-3 (IEC 61511)
Service | Essential | Platinum |
|---|---|---|
Leak Testing | 金彩汇Annual helium test | Quarterly laser VOC scan |
Spare Parts | Global 72h delivery | 金彩汇On-site alloy component stock |
Safety Recertification | Annual ATEX audit | 金彩汇Continuous compliance monitoring |
Decon Training | 金彩汇8-hr chemical handling | Live phenol spill simulation |
