金彩汇Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

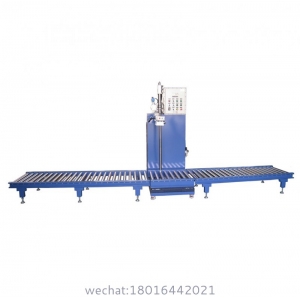

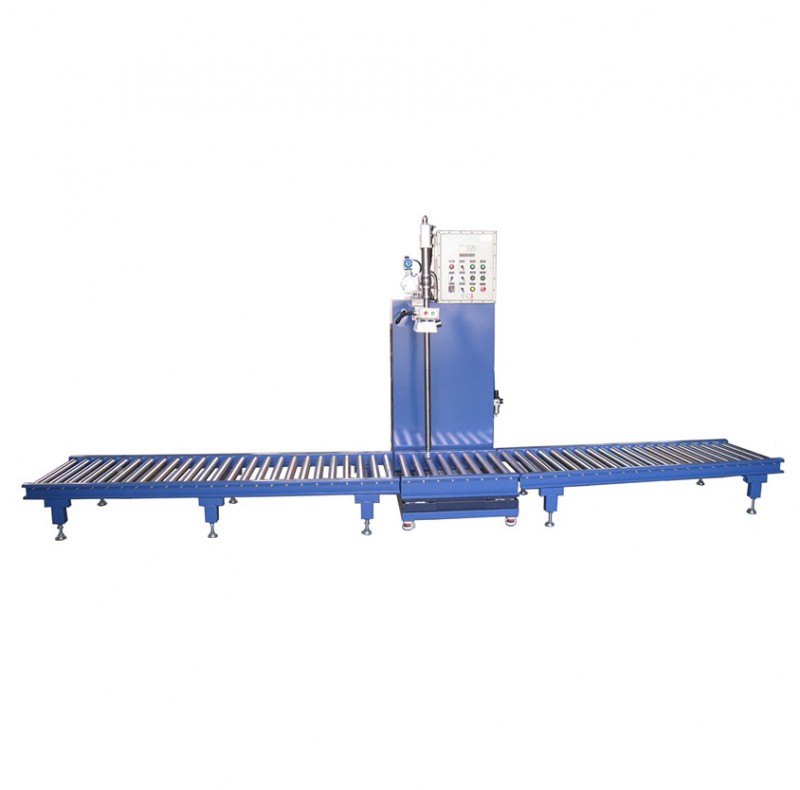

200L Phenol Filling Machine
Triple-Containment Precision for Hazardous Chemicals
Parameter | PS-6100 (Standard) | PS-6200X (ATEX) | PS-6300P (Pharma Grade) |
|---|---|---|---|
Capacity | 180-220L (±0.15%) | 金彩汇180-220L (±0.2%) | 180-220L (±0.1%) |
Throughput | 18 drums/hour | 金彩汇16 drums/hour | 15 drums/hour |
Accuracy | 金彩汇±0.15% mass flow | ±0.2% | ±0.1% gravimetric |
Material Contact | Hastelloy C276 | Alloy 59 | Tantalum-Lined 316L |
Temperature Control | 金彩汇65-80°C (±0.5°C) | Same | 65-80°C (±0.3°C) |
Vapor Containment | >99.99% (Double Seal) | Triple Seal | Glovebox Isolation |
Leakage Rate | <0.001 ml/min | 金彩汇<0.0005 ml/min | 金彩汇<0.0001 ml/min |
Filling Technology | 金彩汇Mass Flow Coriolis | ATEX Diaphragm Pump | Peristaltic Pump |
Crystallization Prevent | Electric Trace Heating | 金彩汇Steam Jacket | 金彩汇Pulsed Flow Agitation |
Power | 480V/60Hz, 12kW | 金彩汇24VDC Ex ia | 480V/60Hz, 10kW |
N₂ Consumption | 60 L/min | 70 L/min | 50 L/min |
Decon System | NaOH CIP (10%) | 金彩汇Solvent Purge | SIP @ 121°C (30 min) |
Certifications | ASME BPE | ATEX Zone 0 | FDA cGMP |
Critical Metrics:
Permeation Resistance:
Material | Phenol Permeation Rate金彩汇 (ASTM F739) |
|---|---|
Kalrez® 6375 | 金彩汇<0.01 μg/cm²/min |
PTFE-Lined | <0.05 μg/cm²/min |
Emergency Response:
Failure Mode | Action |
|---|---|
Seal Breach | 金彩汇Auto shutdown + N₂ flood |
VOC >10 ppm | Scrubber activation + alarm |
Technology | Function | Performance |
|---|---|---|
Pulsed Flow Agitation | 金彩汇Prevents solidification during fill | Maintains >65°C uniformity |
Steam Jacket | 80°C ±1°C thermal control | 金彩汇Melts crystals in 45s |
Dielectric Heating | Non-contact energy transfer | 金彩汇Zero material degradation |
Chemical Manufacturing
Feature | Certification |
|---|---|
API 682 Seal Standard | 金彩汇Dual gas barrier seals |
OSHA 1910.119 PSM | SIL-3 safety interlocks |
EPA RCRA Compliance | 金彩汇Secondary containment tray |
Pharmaceutical Intermediates
金彩汇USP <797> Sterile Filling Option
金彩汇0.2μm Vent Filters
金彩汇Clean-in-Place (CIP) Validation:
Test | Result |
|---|---|
Phenol Residual | <0.1 ppm (HPLC) |
Bioburden | <1 CFU/100ml |
Electroplating & Resins
金彩汇Low-Metal Contamination:
金彩汇Fe<0.1 ppm, Ni<0.05 ppm
金彩汇Static Dissipation: <10⁵ Ω
12" ATEX HMI with ChemGuard OS
AI Safety Modules:
Permeation Predictor:
Parameter | Maintenance Alert |
|---|---|
Seal Swelling >5% | Replace gasket (Level 2) |
Temp Fluctuation >2°C | 金彩汇Calibrate sensors (Level 1) |
VOC Anomaly Response:
Concentration | Action |
|---|---|
>1 ppm Phenol | 金彩汇Hood flow +200% |
>5 ppm | 金彩汇Full shutdown |
BASF Ludwigshafen Case:
*"After 12 months using PS-6200X:
Zero Leak Incidents金彩汇 (vs 3.7/year previously)
Crystallization Downtime: 38h → 0h
Exposure Risk: Reduced to ALARA levels
ROI: 11 months"*
► ATEX 2014/34/EU Cat.1 Zone 0 (PS-6200X) ► FDA 21 CFR 211 cGMP (PS-6300P) ► ASME B31.3 Process Piping ► ISO 15848-1 Class AH Sealing ► EHEDG Class III Containment
1. Pre-Heated Drum Loading → 2. N₂ Purging (O₂<0.1%) → 3. Double-Seal Nozzle Docking → 4. Mass Flow Filling (±0.15%) → 5. Vapor Hood Engagement → 6. Post-Fill Steam Flush → 7. Drum Sealing in Glovebox
Cycle Time金彩汇: 3.3 minutes/drum
Model | Price | Lead Time | Critical Add-Ons |
|---|---|---|---|
PS-6100 | $185,000 | 18 weeks | 金彩汇Dielectric Heater (+$22,000) |
PS-6200X | $248,000 | 22 weeks | SIL-3 Safety PLC (+$35,000) |
PS-6300P | $315,000 | 26 weeks | 金彩汇Isolator Glovebox (+$68,000) |
ROI Analysis:
► Typical Savings: - Phenol Loss: $42,000/year (0.08% vs 1.5% loss) - Downtime: $78,000/year (crystallization prevention) - Regulatory Fines: $150,000 avoided ► Payback: 14-18 months
