Functional features:Product Settings - Store weight settings and related filling parameters for various products, with simple and easy to learn operationMulti stage filling - can be divided into two s

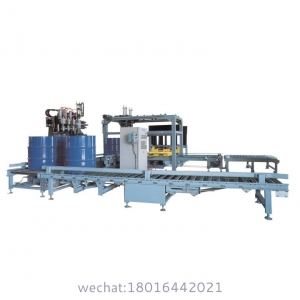

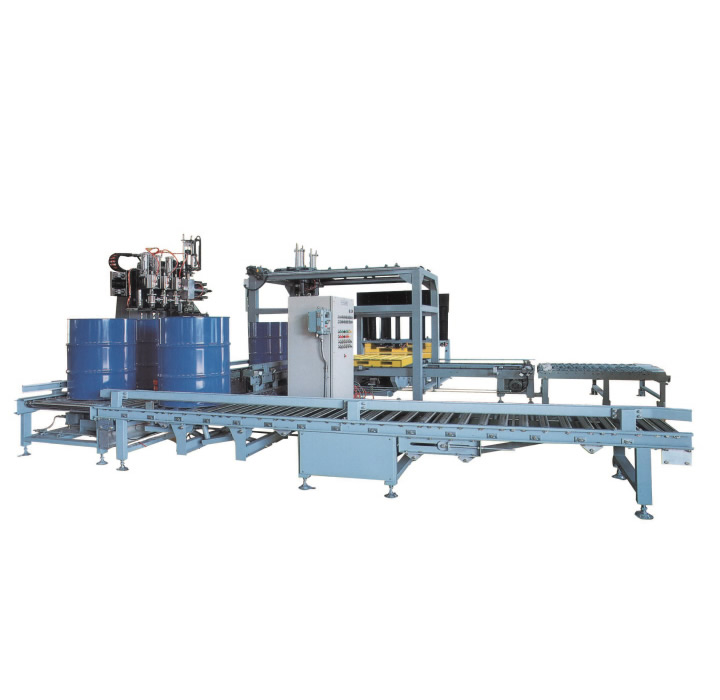

200L Automatic Lubricants Filling System
Precision Filling for Extreme Viscosities. Explosion-Safe. Industry 4.0 Ready.
Parameter | LF-3100 (Standard) | LF-3200X (ATEX) | LF-3300H (High-Temp) |
|---|---|---|---|
Capacity | 金彩汇180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.18%) |
Throughput | 26 drums/hour | 24 drums/hour | 25 drums/hour |
Viscosity Range | 10-800,000 cP | 金彩汇50-500,000 cP | 10-300,000 cP |
Accuracy | ±0.15% mass flow | ±0.2% | ±0.18% gravimetric |
Filling Technology | Heated Coriolis (80°C) | 金彩汇Ex-rated diaphragm pump | HT Screw Conveyor (150°C) |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L + PEEK coating |
Additive Injection | 3-port dosing (±0.5%) | 2-port Ex-rated | 4-port HT dosing |
Static Control | <10⁵ Ω (NFPA 77) | <10⁴ Ω | <10⁵ Ω |
Power | 480V/60Hz, 35kW | 金彩汇24VDC Ex ia | 480V/60Hz, 40kW |
N₂ Consumption | 45 L/min | 50 L/min | 40 L/min |
Clean Time | CIP: 12 min | Solvent purge: 18 min | 金彩汇HT steam wash: 25 min |
Footprint (L×W×H) | 金彩汇3800×2200×3200mm | 4000×2400×3500mm | 3900×2300×3300mm |
Performance Highlights:
NLGI Grade 3 Grease Handling金彩汇: Pulsed screw fill @ 150°C
Cold Climate Oils金彩汇: -30°C cold start capability
Additive Blending: Real-time viscosity compensation
Risk | Technology | Certification |
|---|---|---|
Solvent Ignition | 金彩汇N₂ inerting (O₂<0.5%) | 金彩汇ATEX Zone 1 |
Overfill | Dual radar sensors (±1mm) | SIL-3 Safety |
Cross-Contamination | 金彩汇Self-purging flow path | ISO 9001:2015 |
Static Discharge | 金彩汇Ionized air curtain | ANSI/ESD S20.20 |
Automotive Lubricants
Feature | Compliance |
|---|---|
金彩汇ILSAC GF-6/API SP | 金彩汇Auto-viscosity compensation |
Low-SAPS additives | 金彩汇Dedicated dosing module |
金彩汇OEM approvals | Recipe database (50+ presets) |
Industrial Gear Oils
ISO 6743-6 viscosity classes
金彩汇EP additive injection (S/P/Cl)
MIL-PRF-2105E testing port
Food-Grade Lubricants
金彩汇NSF H1 registration support
Allergen-free purge protocol
金彩汇EHEDG-certified cleanability
12" HMI with LubriOS™
AI-Driven Optimization:
Energy Savings Mode:
Condition | Action |
|---|---|
金彩汇Standby >30 min | Auto-reduce heating by 70% |
Low throughput | Pump speed optimization |
Anomaly Response:
Fault | Resolution |
|---|---|
Viscosity spike | Flow rate adjustment + alert |
金彩汇Additive ratio error | 金彩汇Auto-flush + recalibration |
ExxonMobil Singapore Report:
*"After 12 months operating LF-3100:
Output金彩汇: 8 → 26 drums/hour (+225%)
Grease Waste: 4.2% → 0.07%
VOC Emissions: 350 ppm → <2 ppm
ROI金彩汇: 8 months"*
► ATEX 2014/34/EU (Zone 1) ► FDA 21 CFR 178.3570 (H1) ► ISO 6743 Lubricant Standards ► API 682 Seal Standard ► CE EN 60204-1
1. AGV drum loading → 2. N₂ purging (O₂<0.5%) → 3. Viscosity pre-scan → 4. Heated mass flow filling → 5. Additive injection → 6. Torque-sealed lid closure → 7. Automated palletizing
Cycle Time金彩汇: 2.3 minutes/drum
APPLICABLE BARREL TYPE
