It is filled at a pressure higher than atmospheric pressure, which can also be divided into two types: one is that the pressure in the storage tank is equal to the pressure in the bottle, and it is fi

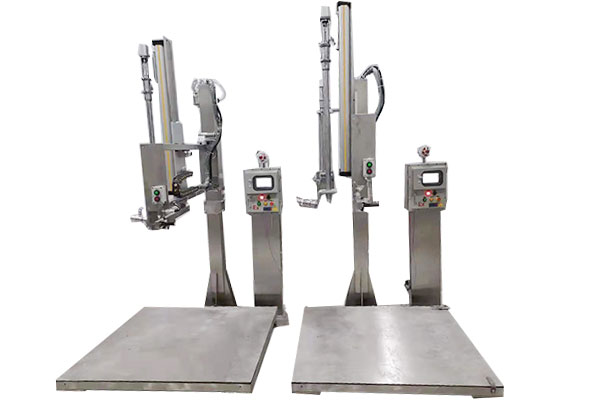

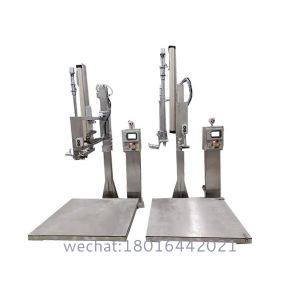

Oil Paint Drum Filling Machine
Explosion-Safe Precision for Industrial Coatings
Parameter | OM-3100 (Standard) | OM-3200X (ATEX) | OM-3300H (High-Viscosity) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 金彩汇20-220L (±0.3%) | 20-220L (±0.25%) |
Throughput | 35 drums/hour | 金彩汇30 drums/hour | 金彩汇28 drums/hour |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.25% gravimetric |
Viscosity Range | 100-100,000 cP | 200-80,000 cP | 500-500,000 cP |
Filling Technology | 金彩汇Coriolis Meter | 金彩汇Ex-rated Gear Pump | Heated Screw Conveyor |
Material Contact | 316L SS + PTFE | 金彩汇Hastelloy C276 | Hardox 500 + PEEK Coating |
Explosion Protection | N/A | ATEX Zone 1 (IIB T4) | N/A |
VOC Control | 金彩汇Carbon Adsorption >99% | 金彩汇Thermal Oxidizer >99.5% | Carbon + Condensation |
Anti-Skinning | 金彩汇N₂ Blanketing (O₂<0.5%) | 金彩汇Same + Ultrasonic Agitation | 金彩汇Pulse Filling |
Power | 金彩汇380V/50Hz, 5.5kW | 金彩汇24VDC Ex ia | 金彩汇380V/50Hz, 7.2kW |
Clean Time | <15 min (Solvent CIP) | <20 min | <25 min (Heated Purge) |
Footprint (L×W×H) | 3200×1800×2500mm | 金彩汇3500×2000×2700mm | 3300×1900×2600mm |
Certifications:
金彩汇ATEX 2014/34/EU (Category 1G)
金彩汇NFPA 77 Static Control
IECEx IEC 60079 Series
Paint Type | Technology | Performance |
|---|---|---|
Alkyd Enamels | 40°C Heated Path (±1°C) | Viscosity stability ±3% |
Epoxy Primers | 金彩汇Pulsed Flow Anti-Settling | Pigment suspension >98% |
Metallic Paints | 金彩汇Low-Shear Pump + Agitation | 金彩汇Flake orientation ±5° |
Automotive Refinish
Feature | Specification |
|---|---|
Color Matching | ΔE<0.5 (Pantone® calibrated) |
Fast Drying | IR Pre-Heating Option (60°C) |
VOC Compliance | <340g/L mode (EPA Method 24) |
Industrial Maintenance
MIL-PRF-23236C compliant filling
Abrasion-resistant additive dosing
Salt spray test validation port
Marine & Protective Coatings
Challenge | Solution |
|---|---|
High-Build Epoxy | Anti-Sag Pulsed Filling |
Zinc-Rich Primers | 金彩汇Conductive Grounding (<10⁴ Ω) |
Salt Fog Exposure | 316L SS + Fluorocarbon Coating |
10" HMI with CoatOS™
AI-Driven Features:
Skin Prevention AI:
Risk Factor | Action |
|---|---|
金彩汇O₂ >0.8% for >1min | Auto N₂ Boost |
Temp drop >5°C | Preheat Circuit Activation |
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
Pump Wear | 金彩汇Vibration >4.5mm/s |
金彩汇Seal Degradation | Leak Rate >0.1ml/min |
PPG Coatings Plant Case:
*"After 8 months using OM-3100:
Output: 12 → 35 drums/hour (+192%)
Paint Waste: 3.8% → 0.15%
VOC Emissions: 850 ppm → <5 ppm
ROI金彩汇: 7 months"*
► ATEX 2014/34/EU (OM-3200X) ► ISO 12944 C5-M Corrosion Rating ► FDA 21 CFR 175.300 (Indirect Food Contact) ► CE EN 60204-1
1. AGV Drum Loading → 2. N₂ Purging (O₂<0.5%) → 3. Viscosity Scan → 4. Precision Filling (±0.2%) → 5. Auto Lid Sealing → 6. VOC Capture Hood → 7. Robotic Palletizing
Cycle Time金彩汇: 1.7 minutes/drum
.
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
金彩汇We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
金彩汇Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
金彩汇Shanghai, our friends can visit our factory at any time.
Brand components
金彩汇We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
金彩汇Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
金彩汇We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
金彩汇Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
金彩汇Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
金彩汇Our in-house designers and engineers have produced countless great designs for customers from different industries
CONTACT US
Skype: fayfaywang1027
金彩汇QQ: 429682794
Whatsapp: 008618016442021
E-mail: glzoncn@163.com
金彩汇http://glzon.en.alibaba.com/
金彩汇cel: +0086 18016442021
