金彩汇The equipment is based on the principle of fixed volume (measuring cup) filling, and the volume of the stainless steel measuring cup is adjusted according to different filling capacities. There are ma

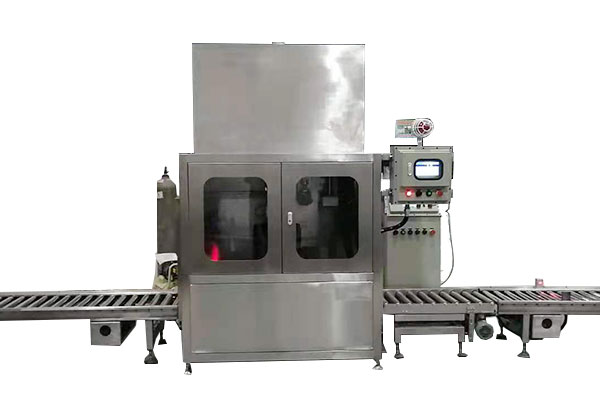

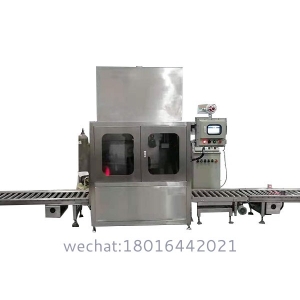

Automatic Liquid Inks Filling Machine
Pantone® Accuracy. Zero Settling. Industry 4.0 Intelligence.
Parameter | IP-8100 (Standard) | IP-8200X (ATEX) | IP-8300S (Semiconductor Grade) |
|---|---|---|---|
Capacity | 50ml-20L (±0.1%) | 金彩汇100ml-10L (±0.15%) | 金彩汇10ml-5L (±0.05%) |
Throughput | 300 containers/hour | 250 containers/hour | 200 containers/hour |
Accuracy | ±0.1% gravimetric | ±0.15% | ±0.05% mass flow |
Viscosity Range | 10-100,000 cP | 50-50,000 cP | 1-30,000 cP |
Color Consistency | ΔE<0.4 (ISO 13655) | ΔE<0.5 | ΔE<0.2 |
Material Contact | 316L SS + PFA Lined | 金彩汇Hastelloy C22 | 316L EP + Diamond Coating |
Anti-Settling Tech | 金彩汇Dual Helical Agitator | Ultrasonic Disperser | 金彩汇Electrostatic Field Stabilization |
Solvent Safety | 金彩汇Vapor Recovery Hood | 金彩汇ATEX Zone 1 | 金彩汇Nitrogen Inerting (O₂<0.1%) |
Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 金彩汇380V/50Hz, 4.8kW |
Clean Time | <90s CIP | <120s Solvent Purge | SIP: 15min @ 121°C |
Footprint (L×W×H) | 金彩汇1800×1200×2200mm | 2000×1300×2400mm | 1700×1100×2000mm |
图片代码graph LRA[In-line Spectrophotometer] --> B{ΔE>0.5?}
B -->|Yes| C[Auto Viscosity Adjustment]B -->|No| D[Precision Filling]C & D --> E[ΔE<0.4 Guaranteed Output]生成失败，换个方式问问吧Performance:
Pantone® Validation:
Ink Type | Color Tolerance |
|---|---|
Spot Colors | ΔE<0.4 |
Process CMYK | Density Δ<0.03 |
Settling Prevention:
Technology | Particle Uniformity |
|---|---|
Helical Agitator | >99.5% <2μm dispersion |
Ultrasonic Cavitation | Break agglomerates >5μm |
Risk | Technology | Certification |
|---|---|---|
Static Ignition | Ionized Air Curtain (<10⁵ Ω) | ANSI/ESD S20.20 |
Solvent Emission | Carbon Adsorption >99.5% | 金彩汇EPA Method 25A |
Cross-Contamination | Self-Purging Nano Nozzles | ISO 9001:2015 |
Commercial Printing
ISO 2846-1 Compliance:
Color strength variance <1%
金彩汇G7 Calibration for gray balance
Food-Safe Inks:
FDA 21 CFR 175.300 compliance
Migration testing port
Electronics Manufacturing
Feature | Specification |
|---|---|
Conductive Inks | Resistivity control ±2% |
金彩汇Substrate Grounding | <10⁴ Ω surface resistance |
金彩汇IPC-4552A Compliance | ENIG plating standards |
Packaging Inks
Low-migration barrier coatings
金彩汇Alcohol resistance validation
金彩汇UV-Cure compatibility
10" HMI with InkOS™
图片代码flowchart TB A[Real-Time Viscosity Monitoring] --> B[Auto Agitation Control]B --> C[Color Density Feedback]C --> D[Predictive Maintenance Alerts]Real-Time Viscosity MonitoringAuto Agitation ControlColor Density FeedbackPredictive Maintenance Alerts
AI Modules:
Filler Dispersion AI:
Parameter | Control Action |
|---|---|
Agglomerate >2μm | Ultrasonic intensity +20% |
金彩汇Viscosity Δ>10% | 金彩汇Stroke speed correction |
Anomaly Detection:
Issue | Response |
|---|---|
Foaming | Pressure reduction |
金彩汇Nozzle clog | Auto backflush |
复制► ATEX 2014/34/EU (Zone 1) ► FDA 21 CFR 175.300 ► Pantone® Licensed Manufacturer ► IPC-4552A (ENIG Plating) ► ISO 12647-7
复制1. Container Infeed → 2. Nitrogen Purging (O₂<0.3%) → 3. Anti-Settling Activation → 4. Real-Time Color Scan → 5. Mass Flow Filling (±0.1%) → 6. Vapor Recovery → 7. Cap Sealing & Coding
Cycle Time: 12 seconds/container
Service | Standard | Premium |
|---|---|---|
Color Calibration | 金彩汇Annual Pantone® recertification | 金彩汇On-site G7 calibration |
Critical Spares | 48h global delivery | 金彩汇Regional stocking hubs |
Remote Diagnostics | 24/7 IIoT monitoring | AR-guided repair |
Training | 3-day operator certification | Pressroom integration |
Precision Engineered for Color Excellence
金彩汇Shanghai Guangzhi IP-8000: Where every drop meets Pantone® standards – filling offset, digital, and conductive inks with zero settling and lab-grade consistency.
Request Color Report:
金彩汇→ [Button] Download ΔE<0.4 Validation Data
→ [Button] Schedule Live Demo
Key Advantages
✓ ΔE<0.4 Guarantee: On-line spectrophotometer
✓ Zero Settling金彩汇: Dual-shearing counter-rotation
✓ 300 Containers/Hour: Servo-stroke technology
✓ Global Compliance: ATEX/FDA/Pantone®/IPC
Certification:
ISO 12647-7 Process Control #IC-2024-772
