Detailed introduction:1. This machine is a semi-automatic piston type, with a reasonable design, compact model, and convenient operation;2. The material contact part is made of 316L stainless steel ma

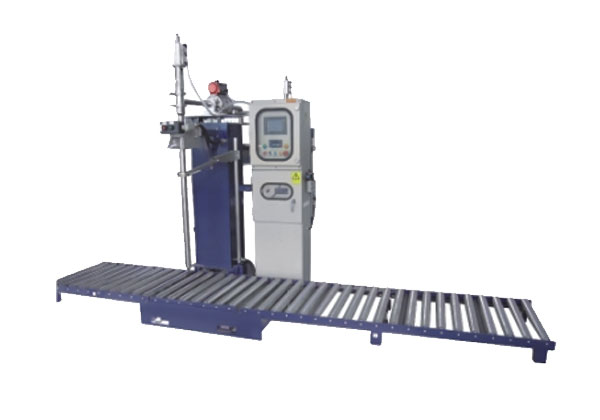

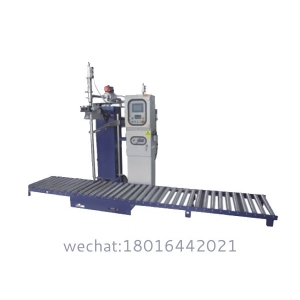

Semi-Automatic Piston Filling Machine
Precision Control. Unmatched Versatility. Budget-Friendly.
Parameter | PS-210 (Standard) | PS-220H (High-Visc) | PS-230F (Food Grade) |
|---|---|---|---|
Capacity Range | 10ml-5L (±0.5%) | 50ml-10L (±0.8%) | 金彩汇10ml-5L (±0.3%) |
Throughput | 30 containers/hour | 25 containers/hour | 28 containers/hour |
Accuracy | ±0.5% | ±0.8% | ±0.3% |
Viscosity Range | 1-50,000 cP | 金彩汇5,000-500,000 cP | 金彩汇1-20,000 cP |
Piston Type | PTFE Sealed | 金彩汇Hard Chrome Plated | FDA UHMW-PE |
Material Contact | 金彩汇304 SS + PTFE | 316 SS | 金彩汇316L SS + EPDM |
Drive System | 金彩汇Servo Motor | Geared Stepper | Brushless Servo |
Power | 金彩汇220V/50Hz, 0.75kW | 220V/50Hz, 1.2kW | 金彩汇110V/60Hz, 0.9kW |
Air Consumption | 金彩汇Not Required | Not Required | Not Required |
Footprint (L×W×H) | 金彩汇800×600×1200mm | 900×650×1300mm | 800×600×1200mm |
Weight | 85kg | 110kg | 90kg |
Tri-Mode Operation:
Product Type | Piston Configuration | Seal Material |
|---|---|---|
Thin Liquids (1-100 cP) | Standard Cylinder | PTFE |
Pastes (1,000-50,000 cP) | 金彩汇Short-Stroke High-Force | Viton® |
金彩汇Ultra-Thick (100k+ cP) | Reciprocating Auger | PEEK |
Key Features:
Tool-Free Changeover金彩汇: <90 seconds
Drip-Free Nozzle: Spring-loaded retraction
Overfill Protection金彩汇: Mechanical limit switch
► Foot Pedal Control (Hands-free operation) ► 7" Touchscreen with Recipe Memory (50+ programs) ► Quick-Release Cylinder (No tools required) ► Adjustable Filling Head (300mm vertical range)
Metric | Manual Filling | PS-210 | Improvement |
|---|---|---|---|
Accuracy | ±3-5% | ±0.5% | 6-10x better |
Output | 15 units/hour | 30 units/hour | 100% faster |
Product Waste | 4-8% | <0.5% | ↓90% |
Operator Fatigue | High | Low | 金彩汇70% reduction |
Cosmetics & Personal Care
Product | Filling Accuracy | Special Feature |
|---|---|---|
Lotions | ±0.7ml | Anti-foam slow start |
Toothpaste | ±1.2g | Pulsed flow for dense pastes |
Serums | ±0.3ml | 金彩汇Nitrogen blanketing option |
Food & Beverage
金彩汇Sauce filling (ketchup/mayo)
Honey/jam packaging
Edible oil dispensing
Chemicals & Adhesives
Material | Solution |
|---|---|
Silicone Sealant | Anti-stringing nozzle |
金彩汇Epoxy Resin | 金彩汇Dual-cartridge mixing option |
金彩汇Lubricating Grease | Heated barrel (50°C) |
7" HMI with FillMaster OS
Memory Functions:
Recipe Library金彩汇: 50+ preset programs
Batch Counter金彩汇: 0-999,999 with reset
Tare Function: Auto container weight deduction
► CE EN 60204-1 ► FDA 21 CFR 177.2600 (PS-230F) ► ISO 9001:2015 ► RoHS/REACH
Model | Base Price | Popular Bundle | Bundle Price |
|---|---|---|---|
PS-210 | $6,800 | 金彩汇Basic + 3 nozzles | $7,200 |
PS-220H | $8,500 | High-Visc + Heated Jacket | $9,300 |
PS-230F | $9,200 | Food Grade + CIP Kit | $10,100 |
Value Adds:
Free金彩汇: On-site training (1 day)
Optional金彩汇: Spare parts kit ($450)
APPLICABLE BARREL TYPE
