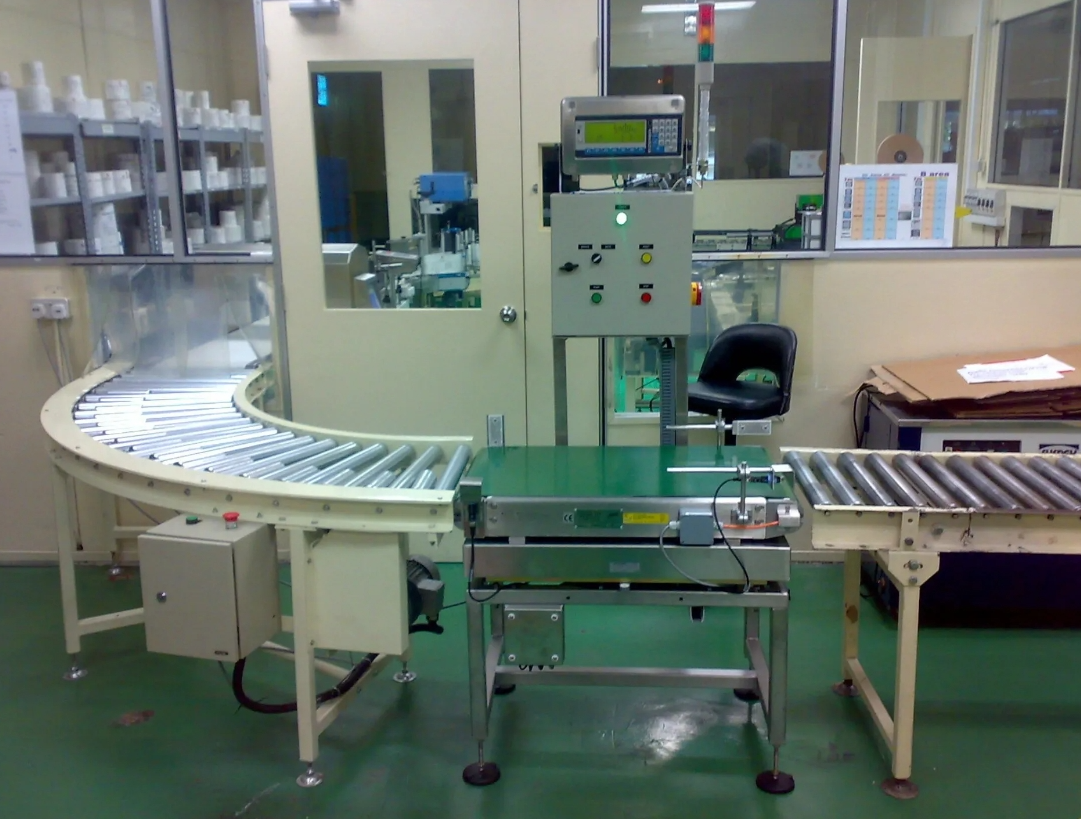

CHECK WEIGHER
- Brand： glzon
- Model： GZM
Technical Superiority
1. Military-Grade Metrology
| Component | Technology | Performance |
|---|---|---|
| Multi-Cell Load Matrix | 4× OIML R60 Class Y(y) sensors | ±0.05g linearity error |
| AI Vibration Filter | Real-time FFT analysis + CNN | 99.5% noise rejection (ISO 10816) |
| Airflow Stabilizer | CFD-optimized wind tunnel | ±0.2g in 2.5m/s drafts |
| Auto-Span Calibration | Internal motorized weights | NIST-traceable accuracy |
2. Zero-Waste Intelligence
图片代码graph LR
A[Weight Data] --> B{SPC Analytics}
B --> C[Predictive Giveaway Model]C --> D[Filler Adjustment Signal]Weight DataSPC AnalyticsPredictive Giveaway ModelFiller Adjustment SignalKey Algorithms:
Dynamic Tolerance Control:
Process Capability Action Material Savings Cp >1.33 Auto-tighten limits ↓0.5-2.8% Cp <1.0 Alert + widen tolerance ↓False rejects Root Cause Mapping:
Correlates weight deviations with upstream parameters (temp/humidity/vibration)
Technical Specifications
| Model | CW-9100 Pharma | CW-9200 Industrial | CW-9300 ATEX |
|---|---|---|---|
| Accuracy | ±0.05g (1-100g) | ±0.1g (50g-5kg) | ±0.5g (1-50kg) |
| Speed | 600 units/min | 400 units/min | 300 units/min |
| Min. Product | 1g | 50g | 500g |
| Rejection | Air-jet (20ms) | Pusher arm (30ms) | Diverter (50ms) |
| Data Integrity | 21 CFR Part 11 | OPC UA | Ex ia I/O |
| Power | 110V/0.8kW | 380V/1.5kW | 24VDC Ex ia |
| IP Rating | IP54 | IP65 | IP66 (Zone 21) |
| Footprint | 1.8×0.8×1.2m | 2.2×1.0×1.5m | 2.5×1.2×1.6m |
Industry-Specific Engineering
Pharmaceuticals
金彩汇Isolator compatibility (ISO Class 5)
金彩汇VHP-resistant components
金彩汇Blockchain serialization
Food & Beverage
| Feature | Spec |
|---|---|
| Washdown rating | IP69K (80°C/100bar) |
| Allergen control | Auto-purge sequence |
| Condensation logic | Auto-tare compensation |
Chemicals
ATEX Zone 21 (Ex tc IIIC T135°C)
Static dissipation <10⁶ Ω
金彩汇Solvent-resistant enclosures
Smart Ecosystem
10" HMI with OEE Dashboard
图片代码flowchart TB A[Real-Time SPC] --> B[Giveaway Analytics]B --> C[Predictive Alerts]C --> D[Digital Twin Simulation]Real-Time SPCGiveaway AnalyticsPredictive AlertsDigital Twin Simulation
AI Modules:
Golden Batch Profiling:
金彩汇Flags deviations >3σ from ideal weight distribution
Energy Optimizer:
金彩汇Sleep mode during line stoppages (↓40% power)
Carbon Tracker:
金彩汇g CO₂/1000 units calculation
Operational Impact
Global Vaccine Manufacturer:
Reduced overfill from 1.2% → 0.05%金彩汇 in 2ml vials
Saved $2.8M/year金彩汇 in API costs
Achieved zero 483 observations金彩汇 in FDA audit
ROI: 4 months
Certifications
OIML R51 Class Y(y)
FDA 21 CFR 210/211
ATEX 2014/34/EU
ISO 9001:2015
Why CW-9000?
✅ 99.9% Detection Rate - AI false-reject prevention
✅ 50% Energy Saving - Regenerative braking system
✅ Zero Downtime - Hot-swap components
✅ Global Compliance金彩汇 - CE/FDA/ATEX/OIML
