Auto Drum Palletizer
Guangzhi’s Auto Drum Palletizer: Robotic stacking of 55-gallon drums at 50 drums/hour. ±0.8mm accuracy. ATEX/UN/CE certified. 100% labor elimination.
- Brand： glzon
- Model： GZM_30L

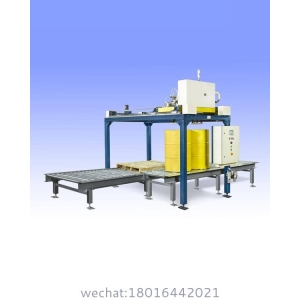

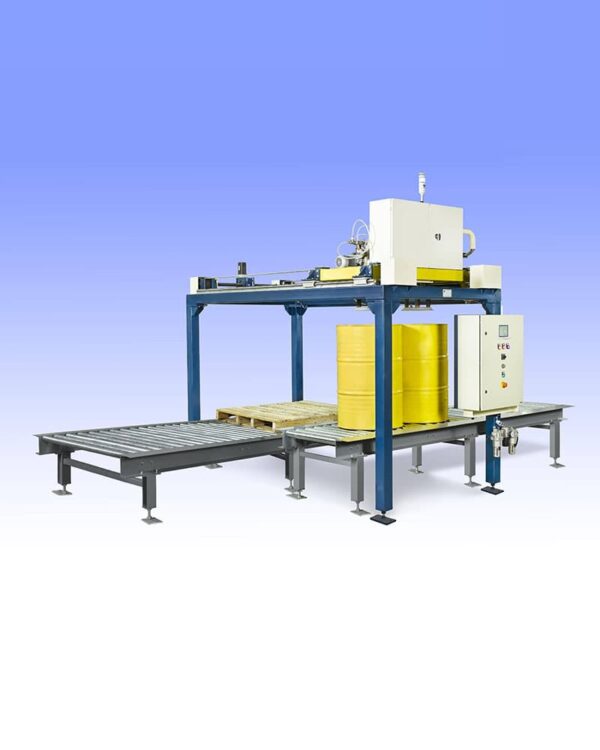

Product Introduction: GZ-DP Series Auto Drum Palletizer
Robotic Precision for Heavy-Duty Drum Stacking
Shanghai Guangzhi Automation’s GZ-DP Series Auto Drum Palletizer revolutionizes industrial drum handling with AI-driven robotics, achieving ±0.8mm stacking accuracy at 50 drums/hour. Engineered for 55-gallon (200L) steel, plastic, or fiber drums, this fully automated system eliminates manual labor while ensuring UN-compliant stack stability – ideal for chemicals, lubricants, food, and hazardous materials requiring 24/7 operation.
Core Technologies & Features
AI Vision-Guided Robotics
3D LiDAR + CCD cameras scan drum orientation/damage in real-time.
金彩汇Auto-adjusts gripper force (50–2,000 kg) to prevent deformation.
Adaptive Gripping System
金彩汇Quick-change EOAT: Mechanical claws (Ø400–650mm), vacuum pads, or magnetic heads.
金彩汇Force-sensing for mixed drum types (steel, plastic, UN-certified).
Smart Conveyor Integration
金彩汇Motorized roller conveyor with drum centering and RFID tracking.
Auto-height adjustment (500–1,800 mm) for layer stacking.
Heavy-Duty Construction
金彩汇Reinforced steel frame (5,000 kg dynamic load capacity).
金彩汇IP66-rated components for harsh environments.
IoT 4.0 Control Hub
15" HMI with Guangzhi StackMaster OS: 50+ pallet patterns, OEE analytics, remote diagnostics.
Technical Specifications
| Parameter | Standard Model | Heavy-Chem Option |
|---|---|---|
| Drum Capacity | 55-gallon (200L) | 30–300 gallon |
| Throughput | 50 drums/hour | 35 drums/hour |
| Stacking Accuracy | ±0.8 mm | ±1.2 mm |
| Max. Stack Height | 4 layers (2.4m) | 6 layers (3.6m) |
| Gripper Compatibility | Ø400–650 mm drums | Square/oval drums |
| Power Supply | 380V/50Hz, 6.5 kW + 0.8 MPa air | |
| Cycle Time | 45–70 sec/drum | 60–100 sec/drum |
| Compliance | CE, ISO 10218-1, ANSI/RIA R15.06 | ATEX, UN 4G/M2 |
| Footprint (L×W×H) | 7,200 × 4,500 × 3,800 mm |
Industry Applications
| Industry | Drum Types | Critical Features |
|---|---|---|
| Chemical Plants | Steel solvent drums | ATEX-certified (Zone 1/21) |
| Food Processing | Plastic edible oil drums | IP69K washdown-ready |
| Pharmaceuticals | Fiber intermediate drums | GMP-compliant isolator option |
| Waste Management | Scrap oil/recycling drums | Leak-containment trays |
Operational Advantages
| Feature | Impact |
|---|---|
| Labor Elimination | Replaces 6 workers per shift |
| Zero Drum Damage | Force-controlled gripping (<0.01% dent rate) |
| Stack Stability | 99.9% topple-free (UN 4G/M2 certified) |
| Rapid ROI | Payback in 8–14 months |
| Energy Efficiency | Regenerative drives save 30% power |
Automated Workflow
Drum Infeed: Conveyor positions drum → RFID scans content.
AI Scanning金彩汇: 3D vision checks orientation/deformation.
Robotic Handling金彩汇: Gripper lifts → places in UN-compliant pattern.
Layer Completion金彩汇: Auto-height adjustment for next layer.
Pallet Dispatch金彩汇: Stretch-wrapped pallet to AGV/warehouse.
Safety Systems
360° Laser Scanning: Halts operation on human intrusion (ISO 13849-1 PLd).
Hazard-Specific Upgrades:
ATEX explosion-proof motors/controllers.
金彩汇|Drum spill containment sump (500L capacity).金彩汇Seismic stabilization for high-stack warehouses.
