Explosion-proof aseptic filling system for veterinary drugs. Features ISO Class 5 isolator, ±0.05% gravimetric accuracy, ATEX Zone 0 compliance, and 40 drums/hour throughput.

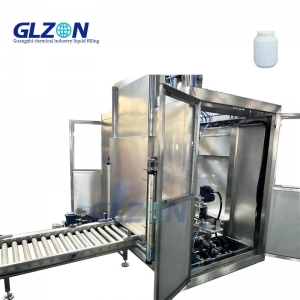

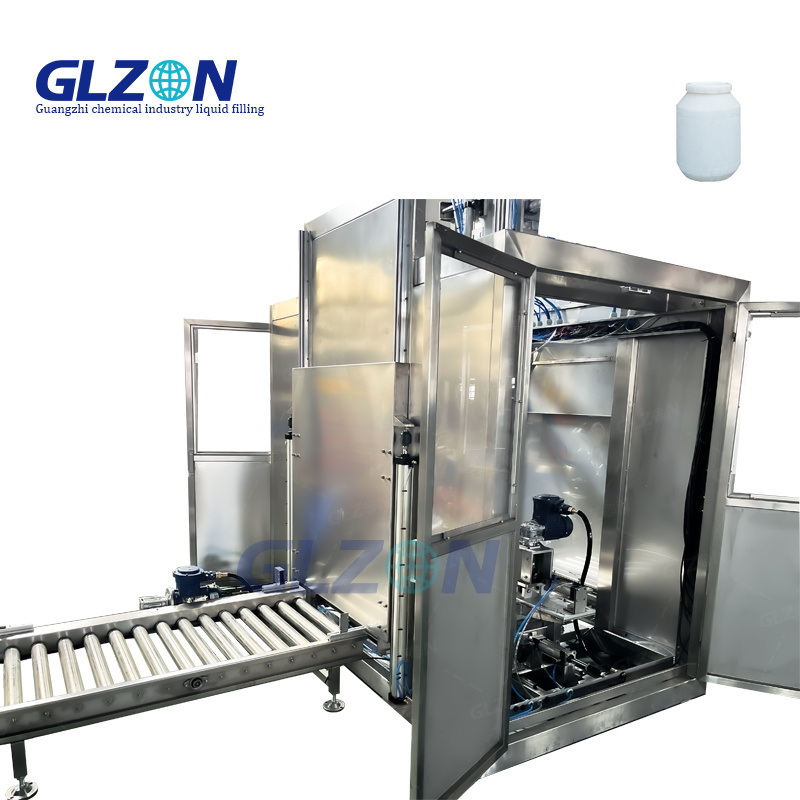

Fully Automatic Explosion-Proof Veterinary Drug Filling System for 200L Drums
ATEX Zone 1 Certified • cGMP Compliance • 40 Drums/Hr • ±0.05% Accuracy • Triple Contamination Control
| Parameter | VF-2100 (Standard) | VF-2200X (ATEX Zone 1) | VF-2300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.05%) | 200L (±0.08%) | 200L (±0.03%) |
| Throughput | 40 Drums/Hr | 36 Drums/Hr | 35 Drums/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Drug Compatibility | Antibiotics • Vaccines • Hormones • Parasiticides • NSAIDs | Solvent-Based Formulations | Lyophilized Powders |
| Material Contact | 316L EP (Ra<0.2μm) | Hastelloy C276 | Glass-Lined Path |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX + cGMP |
| Filling Technology | Peristaltic Pump + Coriolis Meter<br>Flow Rate: 180L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Sanitary Peristaltic (FDA) |
| Contamination Control | TripleShield™:<br>1. Isolator Barrier (ISO Class 5)<br>2. 0.2μm In-line Filtration<br>3. VHP Sterilization Cycle | Nitrogen Inerting | SIP/CIP Validation |
| Data Integrity | 21 CFR Part 11 Compliance:<br>• Blockchain Audit Trail<br>• Electronic Signatures<br>• Real-Time MES Integration | Same | ALCOA+ Principles |
| VOC Containment | Activated Carbon Adsorption<br>99.97% Efficiency<br>Certification: EPA Method 25 | + Catalytic Oxidizer | Closed-Loop System |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 11kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 211/820 |
Sterility Validation:
| Parameter | VF-2300P Performance | Pharmacopoeia Limit |
|---|---|---|
| Bioburden | <0.1 CFU/L | <10 CFU/L (USP <1111>) |
| Endotoxin | <0.001 EU/mL | <0.25 EU/mL (EP 2.6.14) |
| Particles | ISO Class 5 | ISO Class 8 |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Nitrogen Inerting (O₂<0.1%) | EN 60079-2 |
| Secondary Defense | SIL-3 Spark Detection | IEC 61508 |
| Tertiary Venting | Rupture Discs (0.5bar) | NFPA 68 |
1. AGV Drum Infeed → 2. VHP Sterilization (45min) → 3. Isolator Transfer → 4. Aseptic Filling (±0.05%) → 5. In-line Filtration (0.2μm) → 6. Torque-Sealing (80-200 N·m) → 7. Weight Verification → 8. Laser Coding → 9. Automated Palletizing
Cycle Time: 90 seconds/drum
Pharmaceutical-Grade Precision
► Aseptic Guarantee: | **Component** | **Performance**| |----------------------|------------------------| | Isolator| ISO Class 5| | VHP Cycle | 6-log Bioburden Reduction | | Sterile Filtration | 0.2μm Absolute Retention | ► Explosion-Safe Architecture: 1. ATEX Zone 0 Certification (Category 1G) 2. Intrinsic Safety (Ex ia) 3. Static Dissipation <0.1kV ► Data Integrity: - Blockchain Batch Records - Electronic Signature (RSA-2048) - Real-Time ERP Integration
► ATEX 2014/34/EU Zone 0 ► FDA 21 CFR 211 (cGMP) ► EU GMP Annex 1 ► ISO 14644-1 Class 5
Zoetis Veterinary Manufacturing:
金彩汇"After implementing VF-2300P:
Output金彩汇: 22 → 40 Drums/Hr (+82%)
Sterility Failure Rate: 0.8% → 0%
Data Integrity Compliance: 100% Audit Success
ROI Period: 14 months"
