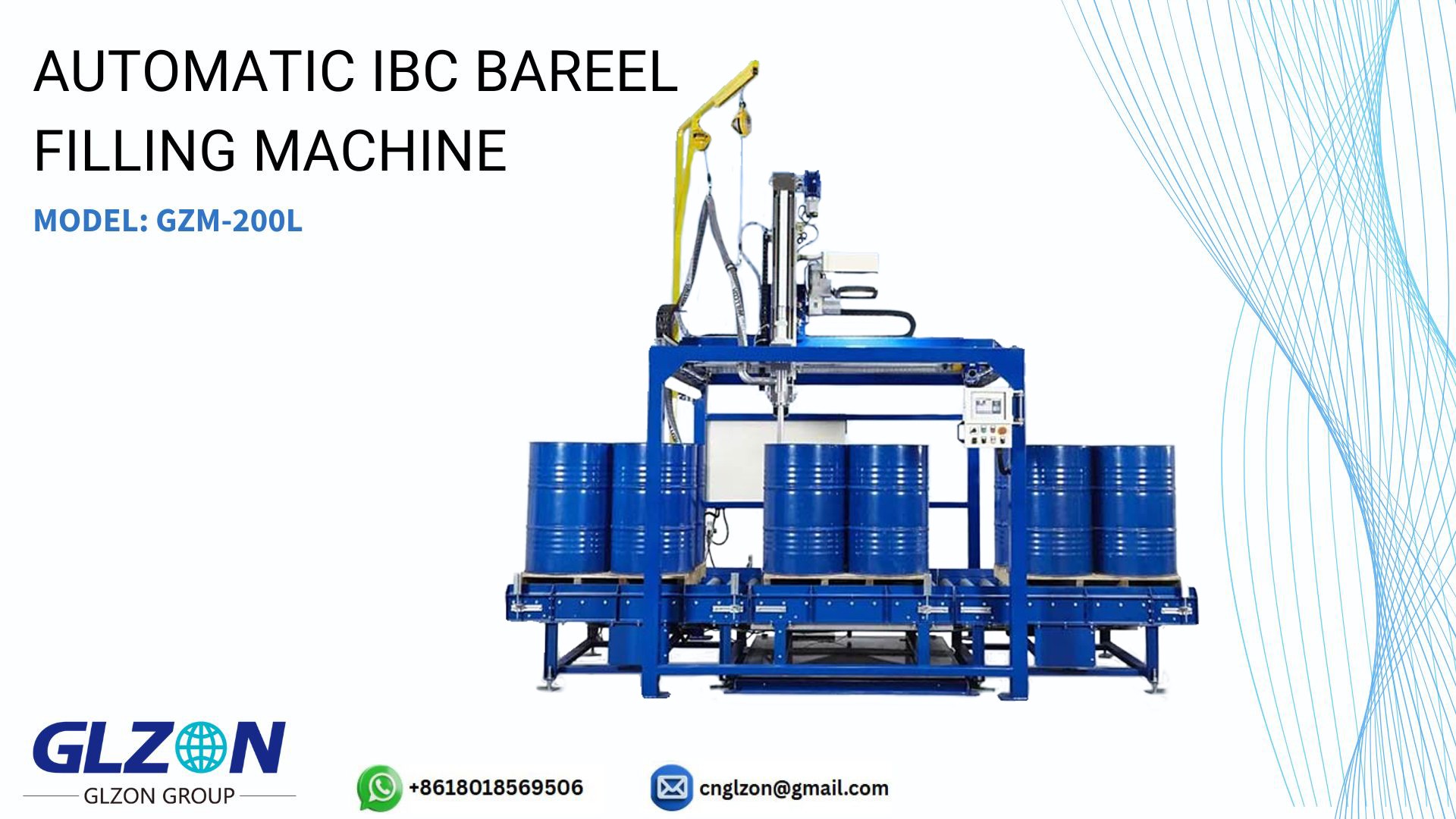

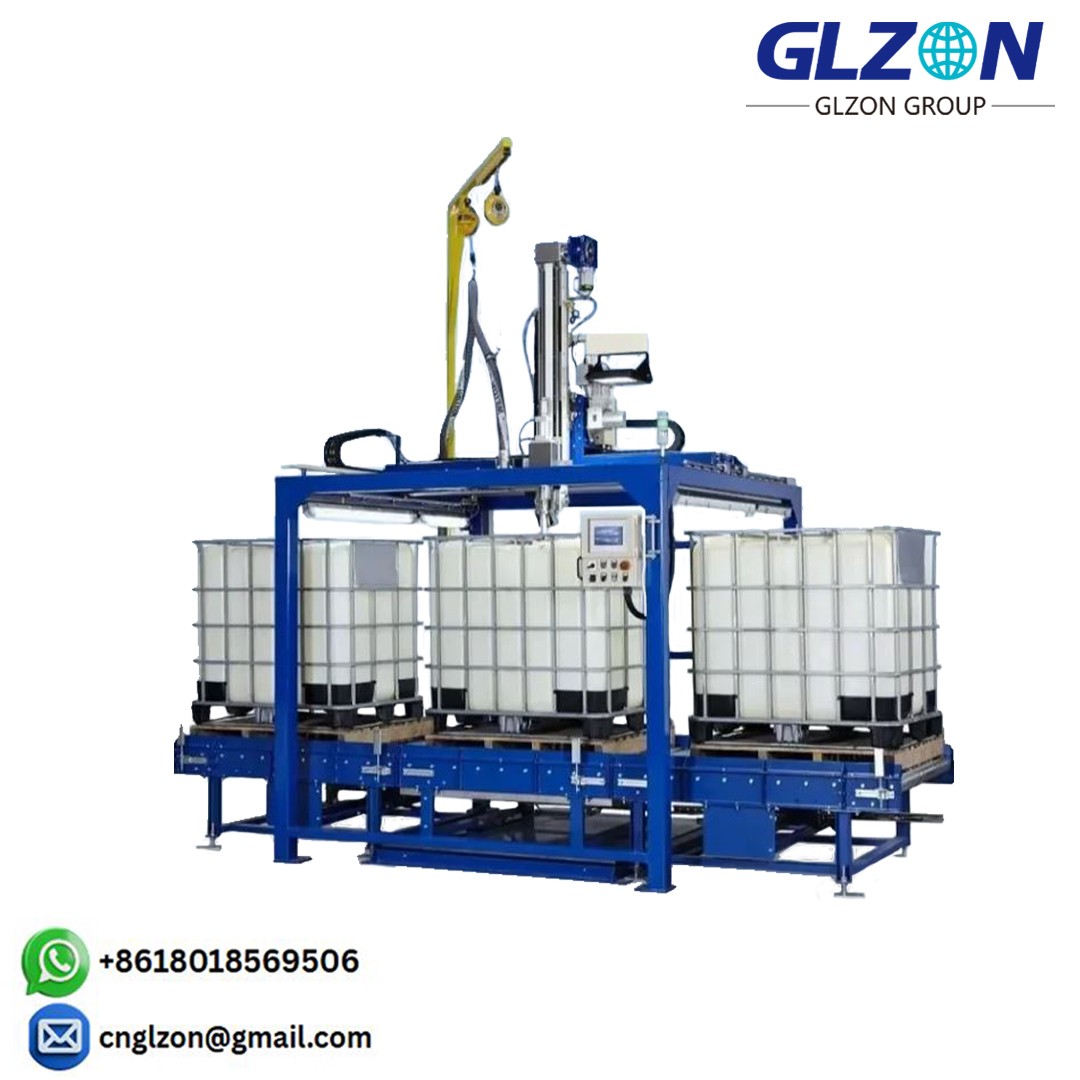

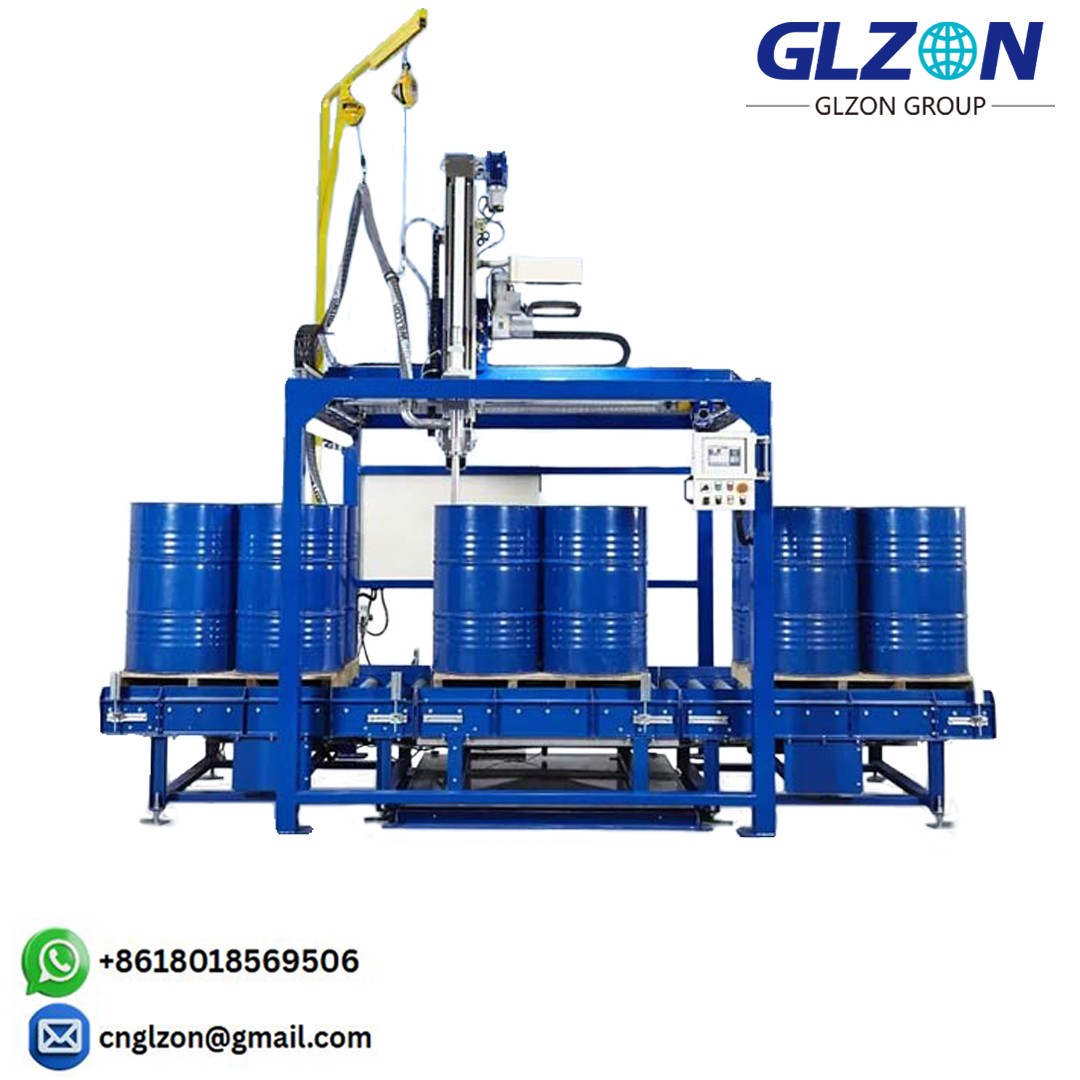

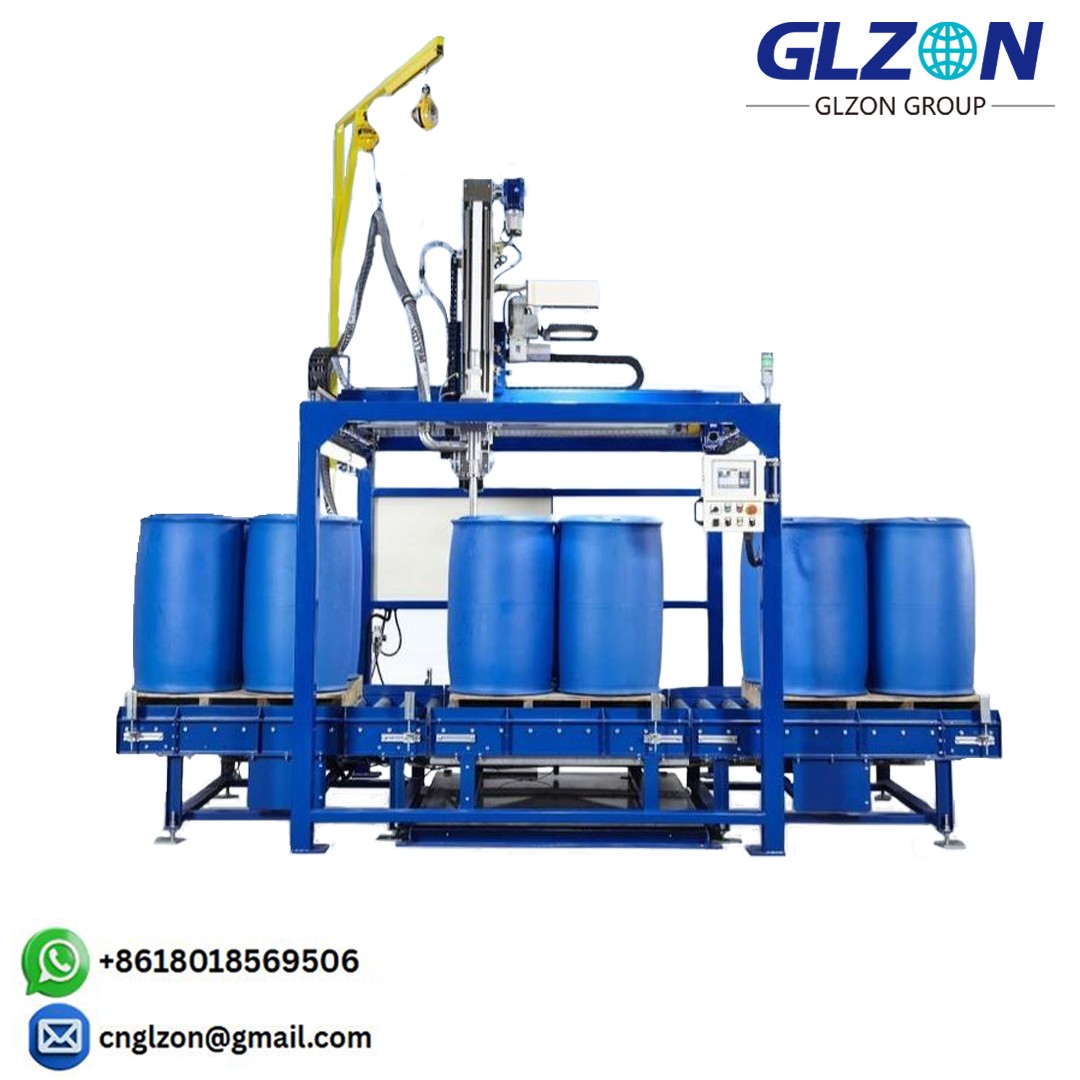

Automatic Drum & Tote Filling Systems
Industry-Leading Precision: Our fully automatic drum filling machine production line is widely used in petrochemical, fine chemical, daily chemical, lubricant, and pharmaceutical industries. Ideal for filling coatings, paints, inks, adhesives, and other liquid materials with ±0.1% accuracy.
Key Features
PLC Control System
Advanced PLC automation ensures high integration, reliable operation, and easy adjustment of filling parameters.
Smart Nozzle Technology
Automatic barrel alignment with fast/slow fill valves maintains speed without compromising precision.
Customizable Solutions
Gun heads available in internal/external plug types, with optional clean room designs for sensitive materials.
Technical Specifications
| 1 | Dimensions (L×W×H) | 2100×1600×2650mm |
| 2 | Filling Heads | 2 (Drum & Tote Filling) |
| 3 | Capacity | ≤100 barrels/hour |
| 4 | Filling Accuracy | ≤±0.1% (Net Weight Filling) |
| 5 | Barrel Diameter | φ500-700mm (Customizable) |
| 6 | Inlet Diameter | ≥φ50mm (Customizable) |
| 7 | Weight | 1600Kg |
| 8 | Power | 2.5KW |
| 9 | Voltage | 380V 50Hz |
| 10 | Air Supply | 0.55-0.65MPa |
Advanced Automation Options
Barrel Handling:金彩汇 Customizable fully automatic barrel loading systems
Safety: Integrated alarm and chain control systems
Material Compatibility: Handles low-foam to foam-free liquids
Hygienic: Optional clean room configurations available
Note:金彩汇 Configuration varies by model. Consult our engineers to select the optimal drum filling machinery for your production requirements, ensuring compliance with safety standards.
