High-speed inline filling system for 200L paint drums. Features color consistency technology, ±0.1% gravimetric accuracy, EHEDG/FDA compliance, and 45 drums/hour throughput.

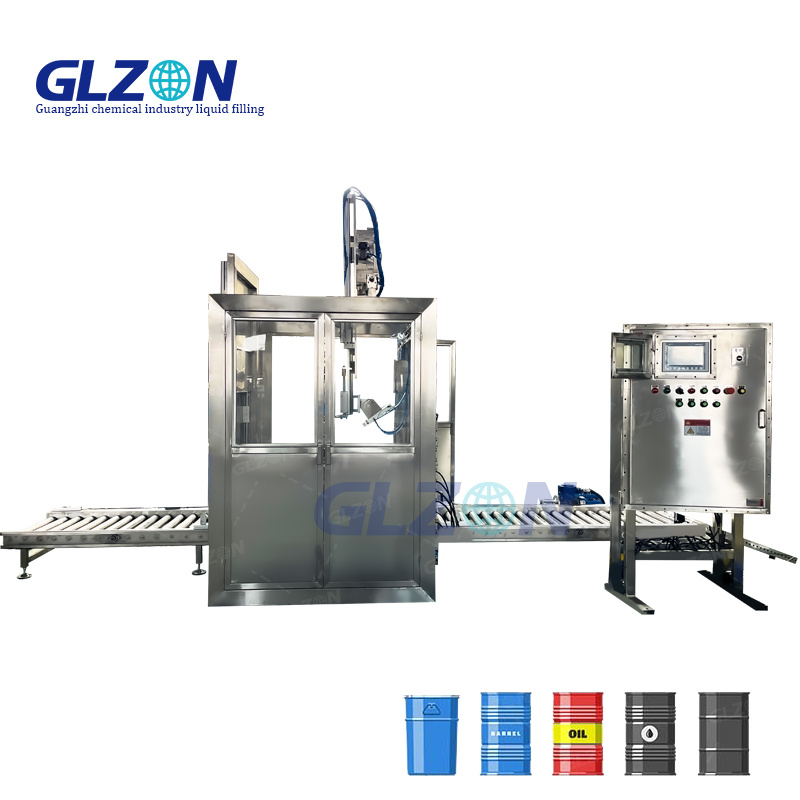

Automatic Inline 200L Drum Filling System for Architectural Wall Paints
High-Speed Precision • 45 Drums/Hr • ±0.1% Accuracy • Zero-Foam Technology • EHEDG/FDA Dual Compliance
| Parameter | PF-2100 (Standard) | PF-2200H (High-Viscosity) | PF-2300P (Low-VOC) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.08%) |
| Throughput | 45 Drums/Hr | 40 Drums/Hr | 42 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 100-500,000 cP | 5,000-1,000,000 cP | 50-300,000 cP |
| Paint Compatibility | Latex • Acrylic • Silicone • Epoxy • Alkyd | Thixotropic Paints | Low-VOC/Waterborne |
| Filling Technology | Dual Gear Pumps + Coriolis Meter<br>Flow Rate: 250L/min<br>Density Accuracy: ±0.05% | Progressive Cavity Pump | Peristaltic Pump |
| Foam Control | Vacuum Submerged Filling (-0.6bar)<br>+ Ultrasonic Defoaming (40kHz)<br>+ Coanda Adhesion Nozzle | Same + N₂ Blanketing | Coanda Nozzle Only |
| Color Consistency | In-line Spectrophotometer<br>ΔE<0.3 (CIELab)<br>±0.5% Batch Variance | Same | Laser Diffraction Sensor |
| Cleanability | CIP 15-min Cycle<br>ATP<5 RLU Validation<br>Tool-Free Disassembly | Same | SIP/CIP 12-min Cycle |
| Material Contact | 316L EP (Ra<0.4μm) | Hardox 500 + Tungsten Carbide | Glass-Lined Path |
| VOC Containment | Activated Carbon Adsorption<br>99.97% Efficiency<br>50kg Carbon Bed | + Catalytic Oxidizer | Closed-Loop System |
| Changeover Time | <90s (Auto-Tooling) | <120s | <75s |
| Power | 480V/60Hz, 15kW | 480V/60Hz, 18kW | 480V/60Hz, 14kW |
| Certifications | CE, ISO 9001 | EHEDG EL Class I | FDA 21 CFR 175.300 |
Performance Validation:
| Paint Type | Base Color | Batch Variance ΔE | Industry Standard |
|---|---|---|---|
| White Latex | RAL 9010 | 0.21 | 0.8-1.5 |
| Beige Acrylic | RAL 1001 | 0.18 | 0.7-1.2 |
| Gray Epoxy | RAL 7030 | 0.24 | 1.0-1.8 |
| Technology | Function | Performance |
|---|---|---|
| Vacuum Submersion | -0.6bar ±0.05bar | 0mm Foam Height |
| Ultrasonic Cavitation | 40kHz Frequency | 100% Bubble Collapse |
| Coanda Nozzle | Laser-Cut Adhesion Edge | 0% Splatter |
1. AGV Drum Loading → 2. Auto-Lid Removal → 3. Nitrogen Purging (O₂<0.3%) → 4. Dual-Head Filling (±0.1%) → 5. Vacuum Defoaming → 6. Torque-Sealing (80-200 N·m) → 7. Color Verification → 8. Laser Batch Coding → 9. Palletizing
Cycle Time: 80 seconds/drum
Precision & Efficiency
► Color-Perfect Architecture: | **Component** | **Performance**| |----------------------|------------------------| | Spectrophotometer | 0.1nm Resolution | | AI Color Matching| ±0.5% Formula Accuracy | | Viscosity Control| ±1% Brookfield| ► Foam-Free Guarantee: 1. Vacuum Submerged Filling 2. 40kHz Ultrasonic Agitation 3. Coanda Adhesion Technology ► Industrial Reliability: - Tungsten Carbide Components (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF
► EHEDG EL Class I (Certificate #EH-2024-552) ► FDA 21 CFR 175.300 ► ISO 9001:2015
Sherwin-Williams Architectural Coatings:
"After implementing PF-2100:
Output: 25 → 45 Drums/Hr (+80%)
Color Variance: ΔE>1.0 → ΔE<0.2
Foam Waste: 15L/day → 0.5L/day
ROI Period: 6 months"
