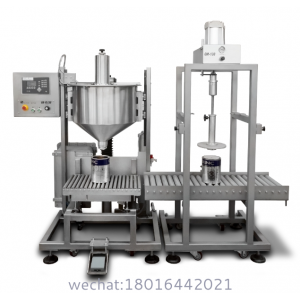

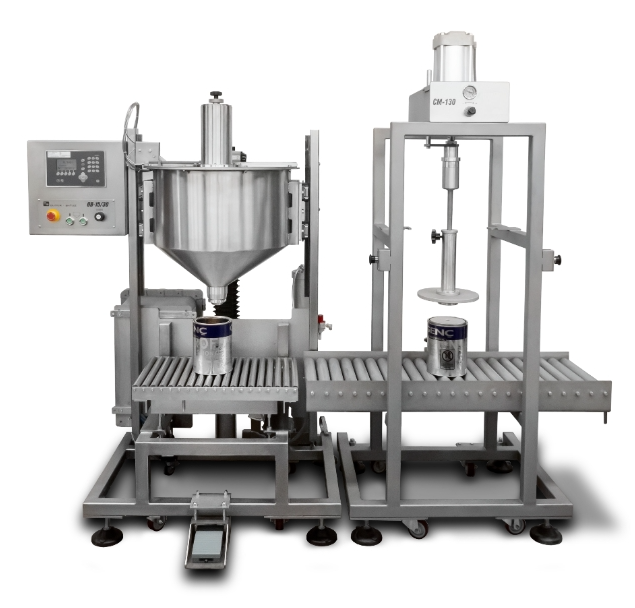

GRAVIMETRIC FILLING MACHINES
High-precision gravimetric fillers achieve ±0.05% accuracy via load cell technology. Handles viscous/foamy/aerated liquids. 500CPH max. FDA/CE/ATEX compliant.
- Brand： glzon
- Model： GZM
Product Essence: Mass-Based Precision Beyond Volumetric Limits
Shanghai Guangzhi Gravimetric Fillers overcome density variations with ±0.05% mass accuracy – mastering foamy detergents, aerated sauces, and shear-sensitive biologics that defeat volumetric systems. Featuring multi-cell load arrays (OIML Class 0.5), AI density compensation, and GMP/ATEX-ready builds, they achieve <0.01% giveaway金彩汇 while eliminating bubble errors, temperature drift, and recipe changeover waste.
Core Technology Innovations
1. Scientific Mass Control
| Component | Technology | Performance |
|---|---|---|
| Multi-Cell Load System | 4× OIML R60 Class 0.5 load cells | ±0.02% linearity error |
| Loss-in-Weight Control | Real-time flow feedback | ±0.05% setpoint accuracy |
| AI Density Compensation | Auto-adjusts for SG variations | Compensates ±20% density shifts |
| Anti-Vibration | Active seismic dampers | Rejects 95% floor vibration |
2. Zero-Waste Architecture
Critical Features:
Dribble Phase Optimization金彩汇: 50 L/min → 0.5 L/min transition
Residual Control金彩汇: ≤0.1g material loss/nozzle
Overfill Prevention: Dual-redundant load cutoff
3. Material-Specific Engineering
| Liquid Challenge | Guangzhi Solution |
|---|---|
| Foaming (detergents) | Vacuum-assisted filling |
| Aeration (sauces) | Pulsed pressure filling |
| Shear Sensitivity (mAbs) | Low-speed peristaltic dosing |
| Static (solvents) | Conductive paths + ionizing bars |
Technical Specifications
| Model | Pharma Micro-Filler | Industrial Macro-Filler | ATEX Chemical Filler |
|---|---|---|---|
| Accuracy | ±0.02% (1g-5kg) | ±0.05% (1-100kg) | ±0.1% (5-1000kg) |
| Throughput | 200 fills/hour | 500 fills/hour | 300 fills/hour |
| Max. Density Shift | ±15% compensated | ±20% compensated | ±15% compensated |
| Container Types | Vials/cartridges | Pails/drums | IBCs/ISO tanks |
| Material Contact | 316L EP + USP VI | 316L + PTFE | Hastelloy C276 |
| Power | 110V/0.5kW | 380V/3.5kW | 24VDC Ex ia |
| Calibration | Auto-span with NIST wts | Semi-auto with test weights | Remote calibration |
| Footprint (L×W×H) | 1000×800×1500mm | 2500×1200×2200mm | 3000×1500×2500mm |
Industry-Specific Solutions
Pharmaceuticals
21 CFR Part 11 electronic records
金彩汇Isolator integration (ISO Class 5)
金彩汇Single-use flow path option
Food & Sauces
金彩汇USDA-compliant materials
金彩汇Allergen purge protocol
CIP at 85°C
Chemicals & Solvents
ATEX Zone 1/21 certification
Vapor recovery >99%
Static control (<10⁵ Ω)
Cosmetics
Perfume alcohol compatibility
Anti-foam pulsed filling
Smart Control Ecosystem
10" HMI with AI Process Optimizer
Key Modules:
OEE Dashboard:
Material consumption vs target
金彩汇Vibration interference alerts
Energy per fill (kWh/kg)
Self-Diagnostics:
Load cell drift detection
Filter clogging prediction
Operational Impact
Global Vaccine Manufacturer:
Challenge: ±3% fill variation in lipid nanoparticles (density shifts)
Solution金彩汇: Gravimetric filler with AI density compensation
Results:
▶ ±0.08% accuracy for $500k/L materials
▶ Zero batch rejection in 12 months
▶ ROI: 3 months
Certifications & Upgrades
Global Compliance:
OIML R60 Class 0.5
金彩汇FDA 21 CFR 210/211
ATEX 2014/34/EU (Zone 1)
金彩汇ISO 9001:2015
Advanced Modules:
| Module | Function |
|---|---|
| Inline Rheometer | Real-time viscosity (±2 cP) |
| Robotic Taring | Auto-container weight learning |
| AR Maintenance Guide | HoloLens-assisted calibration |
| Carbon Tracker | kg CO₂ per tonne filled analytics |
Support & Service
24/7 Metrology Support:
金彩汇Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
金彩汇Load cells (OIML Class 0.5)
Dribble valves
Vibration dampers
Performance Validation:
NIST-traceable weight certification
Material adhesion optimization
Where Every Milligram Matters
Shanghai Guangzhi Gravimetric Fillers: Engineering absolute precision for the world’s most valuable fluids – from vaccines to nano-suspensions. ⚖️
