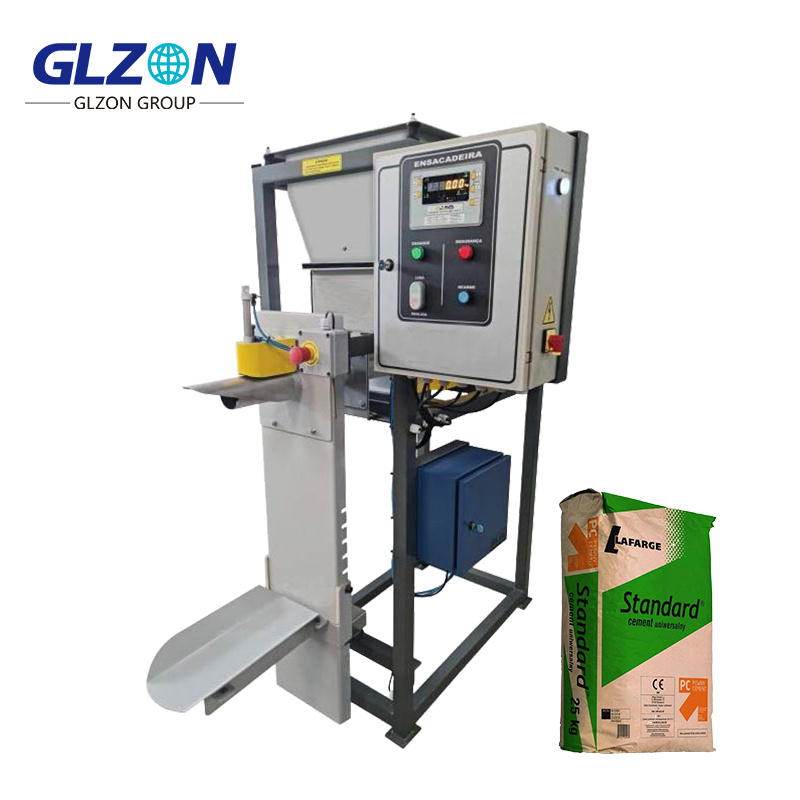

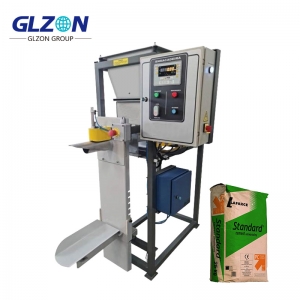

Gypsum Powder Valve Bag Packing Machine for 25kg– 50kg Bags
Automatic valve bag packer for 25-50kg gypsum powder: 40 bags/min, ±0.2% accuracy. Dust containment <1mg/m³. ATEX/OIML certified.
- Brand： glzon
- Model： GZM-50V
GyroPack GP-50 Series
25-50kg Gypsum Powder Valve Bag Packing Machine
Dust-Free. Precision. High-Speed.
Technical Specifications
Parameter | GP-50 Standard | GP-50X (ATEX) | GP-50H (High Moisture) |
|---|---|---|---|
Bag Capacity | 25-50kg (±0.2%) | 25-50kg (±0.3%) | 金彩汇25-50kg (±0.25%) |
Output | 40 bags/min | 35 bags/min | 38 bags/min |
Weighing Accuracy | ±0.2% (OIML R61) | ±0.3% | ±0.25% |
Dust Emission | <1mg/m³ | <0.5mg/m³ | 金彩汇<0.8mg/m³ |
Material Compatibility | 金彩汇β-Hemihydrate/Anhydrite | Same | Stucco/FGD Gypsum |
Bag Types | Sewn Valve Bags | Same | 金彩汇PE/PP Laminated |
Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 8.2kW |
Air Consumption | 金彩汇150 L/min @ 0.6MPa | 120 L/min | 140 L/min |
Moisture Control | N/A | N/A | Dehumidifier (RH<5%) |
Footprint (L×W×H) | 3500×2200×3200mm | 金彩汇3800×2400×3500mm | 3600×2300×3300mm |
Core Technology Innovations
1. Zero-Dust™ Containment System
Performance Metrics:
Component | Specification |
|---|---|
Dust Capture | >99.9% (ISO 9096) |
Static Control | 金彩汇Conductive path (<10⁵ Ω) |
Explosion Protection | ATEX Zone 22 (ISO 80079-36) |
2. Anti-Bridging Architecture
Feature | Technology | Benefit |
|---|---|---|
Dual Helical Agitator | Counter-rotation (10-30 RPM) | Prevents powder bridging |
Pulsed Vibration | 50Hz pneumatic pulsers | Fluidizes compacted powder |
Humidity Control | 金彩汇Dry air injection (dew point -40°C) | 金彩汇Prevents hydration lumps |
Industry-Specific Engineering
Construction Gypsum
Bulk density compensation (0.6-1.2 g/cm³)
Additive Port
Function
金彩汇Retarder Injection
Controls setting time
Water Repellent
金彩汇Enhances moisture resistance
Medical Plaster
金彩汇ISO 13485 compliant design
0.1μm terminal filtration
Cleanroom compatibility (ISO Class 8)
Agricultural Gypsum
Variable density filling (for soil amendments)
金彩汇Trace mineral dosing ports
Weather-resistant bag sealing
Performance Comparison
Metric | Traditional Packer | GP-50 | Improvement |
|---|---|---|---|
Dust Emission | 20-50mg/m³ | <1mg/m³ | ↓98% |
Bagging Accuracy | ±0.5% | ±0.2% | ↑150% |
Output Speed | 金彩汇25 bags/min | 40 bags/min | ↑60% |
Energy Consumption | 0.18 kWh/bag | 0.12 kWh/bag | ↓33% |
Smart Control Ecosystem
10" HMI with Gypsum Intelligence
AI Modules:
Bridging Prediction:
Parameter
Preventive Action
Flow irregularity >15%
Auto-pulse vibration
Humidity >8% RH
Dry air boost
Bag Integrity Monitoring:
Defect
Rejection Rate
Sealing failure
>99.9% detection
金彩汇Weight deviation
Auto-tare compensation
Certifications
► ATEX 2014/34/EU (Zone 22) ► OIML R61 Class Y(b) ► CE EN 61496-1 (Safety) ► ISO 9001:2015 ► NFPA 652 Dust Hazard Analysis
