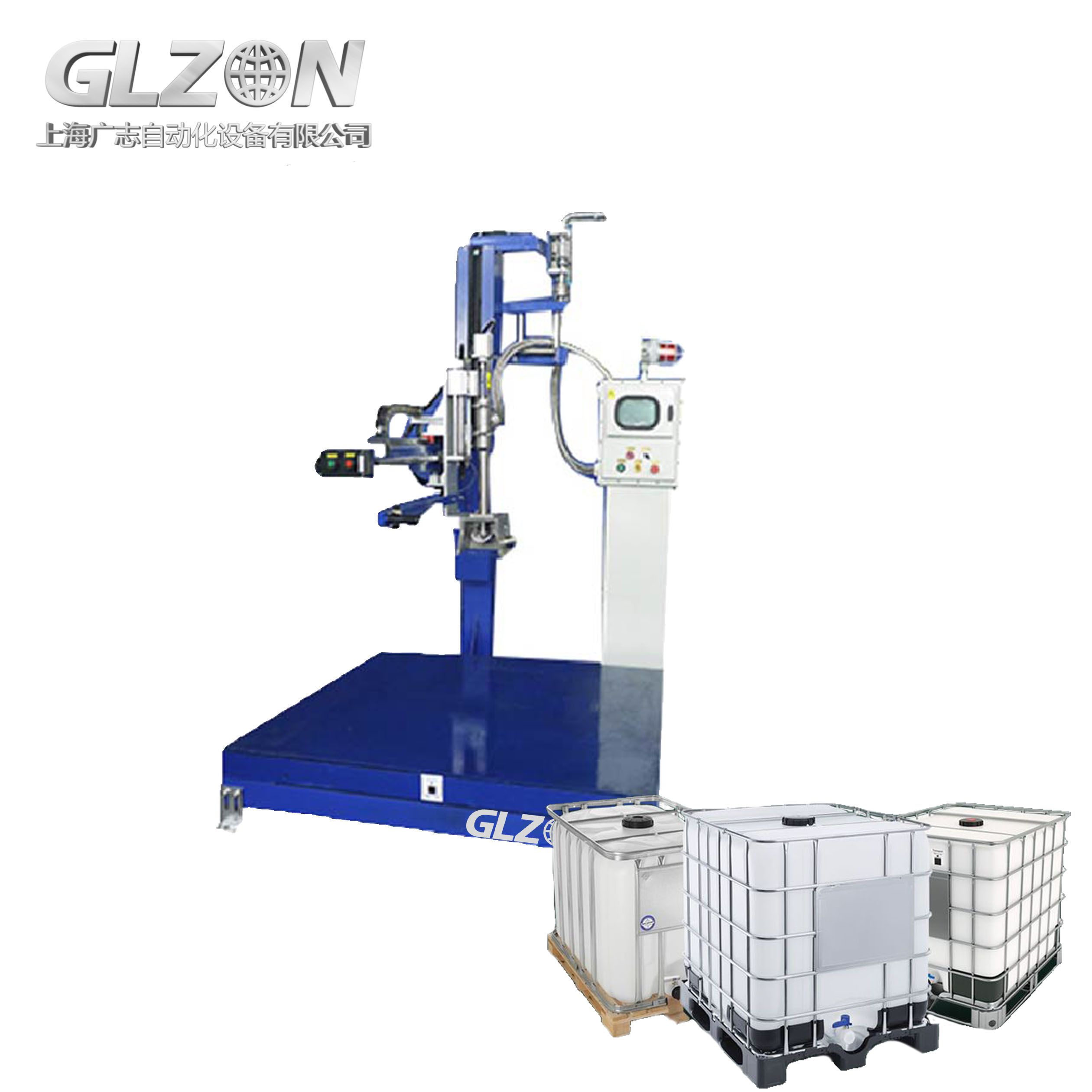

IBC Filling Equipment for Industrial Chemical Filling
Industrial IBC filling: 1500L capacity, ±0.3% accuracy. ATEX Zone 0 certified with >99% VOC capture. cGMP/SIL3 compliant for pharma/chemicals.
- Brand： glzon
- Model： GZM_1000L
ChemIBC Pro CI-3000 Series
Industrial-Grade IBC Filling Systems
Precision. Containment. Compliance.
Technical Specifications
Parameter | CI-3100 (Standard) | CI-3200X (ATEX) | CI-3300C (Corrosive) |
|---|---|---|---|
Capacity | 500-1500L (±0.3%) | 金彩汇500-1250L (±0.4%) | 300-1000L (±0.25%) |
Throughput | 20 IBCs/hour | 18 IBCs/hour | 15 IBCs/hour |
Flow Rate | 50-3000 L/min | 金彩汇50-2500 L/min | 30-1500 L/min |
Accuracy | ±0.3% (Coriolis) | ±0.4% | ±0.25% (Mass Flow) |
Material Compatibility | Solvents/Acids/Resins | 金彩汇Flammable Liquids | HCl/H₂SO₄/HF |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 金彩汇Alloy 20 + PFA Lining |
VOC Control | 金彩汇Carbon Adsorption >99% | RTO >99.5% | Condensation + Carbon |
Explosion Proof | - | ATEX Zone 1/21 | N/A |
Power | 380V/50Hz, 18.5kW | 24VDC Ex ia | 380V/50Hz, 22kW |
N₂ Inerting | 40 L/min | 50 L/min | 35 L/min |
Footprint (L×W×H) | 金彩汇4.5×2.8×3.5m | 金彩汇4.8×3.0×3.8m | 4.6×2.9×3.6m |
Core Technology
1. Triple-Containment Filling
Safety Features:
Static Control金彩汇: Conductive path (<10⁵ Ω)
Spill Prevention: Overflow sensors ±1mm
Fire Suppression: Auto CO₂ flood system
2. Smart Chemical Handling
Chemical Type | Technology | Performance |
|---|---|---|
Acids | PTFE-Lined Flow Path | Corrosion rate <0.1mm/year |
Solvents | Submerged Nozzle Filling | Static dissipation <3kV |
Viscous Resins | Heated Jacket (50-80°C) | Viscosity stability ±2% |
Oxidizers | 金彩汇Decontamination Rinse Port | Residual <0.5ppm |
Industry Applications
Petrochemicals
API 2517 vapor recovery compliance
Crude oil derivatives compatibility
金彩汇SIL 3 overfill protection
Pharmaceuticals
Feature | Certification |
|---|---|
cGMP Compliance | FDA 21 CFR 211.65 |
金彩汇SIP/CIP Validation | ASME BPE-2022 |
Bioburden Control | 金彩汇<1 CFU/ml rinse water |
Agrochemicals
Dedicated allergen purge protocol
USDA 3-A washdown design
Herbicide/pesticide formulation
Performance Data
Metric | Traditional Filling | CI-3100 System | Improvement |
|---|---|---|---|
Spill Reduction | 3-5% | <0.01% | ↓99.7% |
VOC Emission | 金彩汇500-1000 ppm | <5 ppm | ↓99.5% |
Operator Exposure | 金彩汇Direct contact | Zero contact | 金彩汇100% reduction |
Throughput | 12 IBCs/hour | 20 IBCs/hour | ↑67% |
Certifications
► ATEX 2014/34/EU (Zone 0/1) ► IECEx IEC 60079 Series ► ASME B31.3 Process Piping ► FDA 21 CFR 210-211 ► ISO 80079-36 Dust Explosion
Smart Control System
15" IP69K Touchscreen with ChemOS™
AI Features:
Corrosion Analytics:
Parameter
Action
pH drift >±0.5
金彩汇Material compatibility alert
Conductivity spike
Seal replacement warning
Leak Prevention:
Risk
Response
金彩汇Pressure surge
Auto shutoff + relief valve
Sensor failure
金彩汇Triple-redundant backup
APPLICABLE BARREL TYPE
