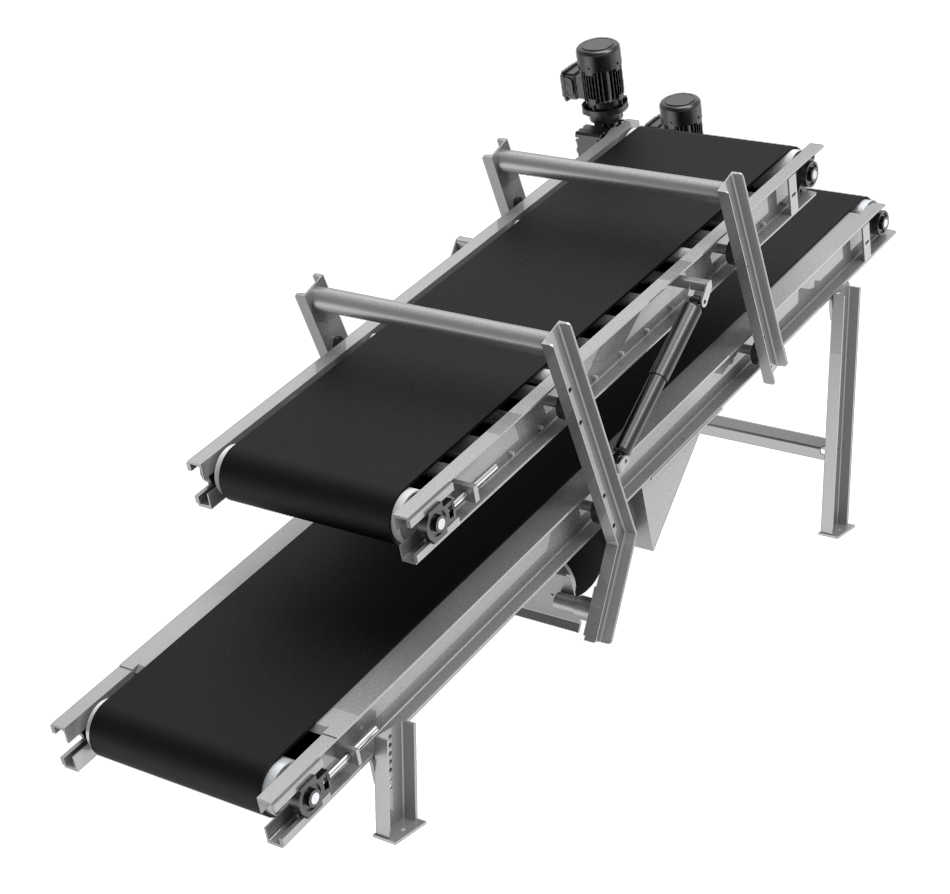

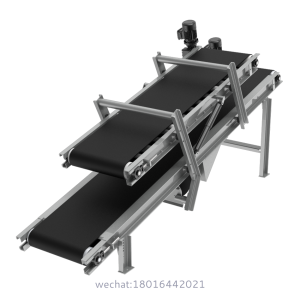

Incline Bag Flattener Conveyors

Product Essence: Precision Bag Conditioning

Shanghai Guangzhi Automation’s Incline Bag Flattener Conveyors transform irregularly filled sacks into uniform blocks – critical for automated palletizing. Engineered for 10-50kg cement, grain, and chemical bags, this system achieves 30 bags/minute with adjustable 30-45° incline, PLC-controlled compression, and ATEX-compliant dust containment.

Core Engineering Innovations

1. Intelligent Flattening Technology

• Dynamic Pressure Control: Servo-driven compression plates adapt force (50-500N) based on bag fill level

• Bag Positioning AI: Photoelectric sensors detect bag orientation for optimal squaring

• Variable Incline: Hydraulic angle adjustment (30°-45°) for different material flow characteristics

2. Industrial-Grade Construction

• Impact Zones: Hardox 450 wear plates at compression points (6x lifespan vs mild steel)

• Dust Containment:

• 金彩汇Enclosed side skirts with silicone seals

• Negative-pressure suction ports (ISO 14644 Class 8)

• Corrosion Defense: Epoxy-coated carbon steel frame + 304SS contact surfaces

3. Seamless Line Integration

• Plug-and-Play PLC金彩汇: Modbus TCP/Ethernet IP connectivity

• Auto-Speed Sync: Matches upstream filling line (10-30 m/min)

• Zero Gap Transfer: Interlocked rollers prevent bag jams

Technical Specifications

Throughput: 30 bags/minute (50kg cement bags)
Bag Compatibility:

• Materials: PP woven, paper, jute

• Dimensions: L: 500-800mm × W: 300-500mm
  Power: 380V/50Hz, 3.7kW
  Conveyor Width: 650mm (standard) / 800mm (wide)
  Incline Range: 30°-45° (hydraulic adjustment)
  Dust Emission: ≤3mg/m³ (ISO 8573-1)
  Footprint金彩汇: 3500×900×2200mm (L×W×H at 45°)

Industry-Specific Solutions

Cement Plants

• Vibration Dampeners: Prevent material settling during flattening

• Abrasion Kits: Tungsten-carbide roller coatings

Grain & Feed Mills

• Anti-static brushes (surface resistance <10⁹ Ω)

• 金彩汇Food-grade UHMWPE guide rails

Chemical Sector

• ATEX Zone 21 option (Ex d IIC T4)

• 金彩汇Acid-resistant polyurethane seals

Operational Intelligence

• 10" HMI Touchscreen:

• 金彩汇Pressure profile presets for 20+ materials

• Real-time bag count/error logs

• Predictive Maintenance:

• 金彩汇Bearing temperature monitoring

• Belt tension auto-alert

• Safety Ecosystem:

• Emergency stop cords (every 1.5m)

• 金彩汇Guard interlocks

Case Study: Indonesian Cement Plant

Challenge:

• 25% palletizing errors due to irregular bag shapes

• Dust emissions exceeding 15mg/m³
  Solution:

• Incline Flattener with AI compression + HEPA filtration
  Results:
  ▶ 99.2% palletizing success rate
  ▶ Dust levels at 2.1mg/m³
  ▶ ROI in 8 months

Global Compliance & Support

Certifications:

• 金彩汇CE Machinery Directive 2006/42/EC

• ISO 9001:2015 Quality Management

• 金彩汇ATEX 2014/34/EU (Option)

Value Engineering:

• 30% Energy Savings: Regenerative drives capture braking energy

• Modular Upgrades:

• In-line checkweigher (±0.1kg)

• RFID tag scanning

• Automatic bag turner

Worldwide Support:

• 24/7 remote diagnostics via IIoT gateway

• Critical Spares Dispatch: ≤72h global delivery

• 金彩汇Hardox wear plates

• Servo compression modules

• 金彩汇Dust filter cartridges

• AR Maintenance Guides金彩汇: Step-by-step overlay instructions
