Side label machine
Industrial side label applicator achieves ±0.15mm accuracy at 200 units/min. AI print inspection, 10s tool-free changeover & GMP/ATEX compliance. Reduce mislabels by 99.9%.
- Brand： glzon
- Model： GZM

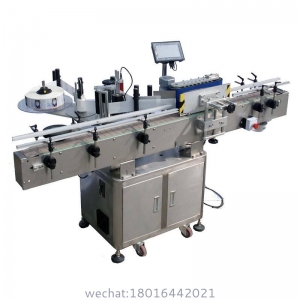

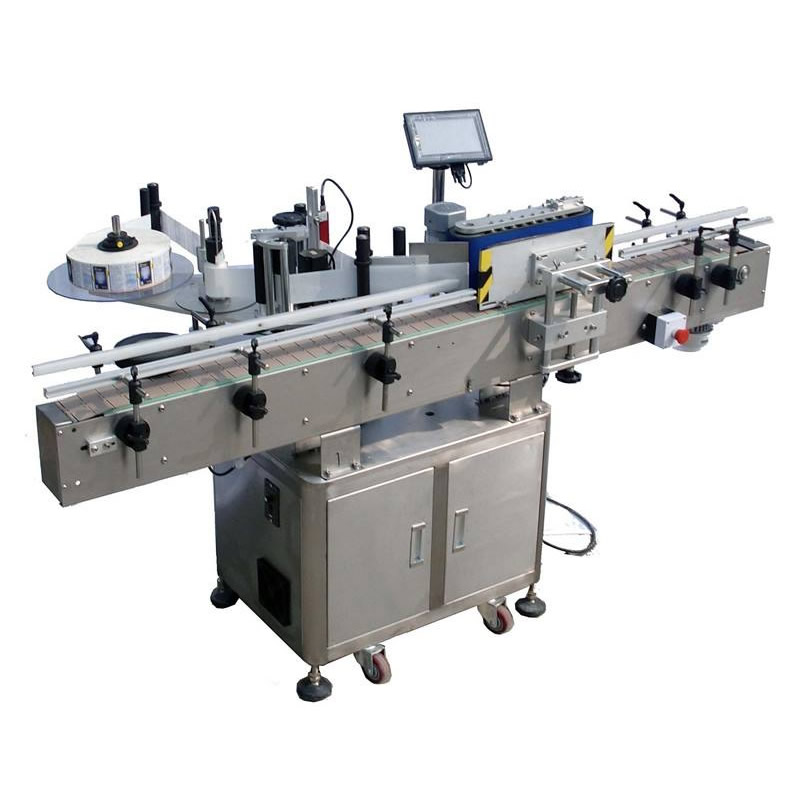

Industrial Side Labeling Machine
Shanghai Guangzhi Automation
Product Overview
Precision-engineered for high-speed production lines, this side labeling system achieves ±0.15mm placement accuracy on curved, flat, or irregular containers at 200 units/minute金彩汇. Combining military-grade motion control, AI-driven inspection, and tool-free changeover, it eliminates mislabels while reducing material waste by 30%.
Technical Specifications
| Parameter | Standard Model | Pharma-Grade Model |
|---|---|---|
| Accuracy | ±0.2mm | ±0.15mm |
| Speed | 200 containers/min | 180 containers/min |
| Label Width Range | 20–150mm | 20–120mm |
| Min. Container Size | Ø25mm × 50mm H | Ø30mm × 60mm H |
| Print Inspection | 600dpi OCR/OCV | 800dpi with UV validation |
| Power Supply | 110–240VAC, 1.5kW | 110–240VAC, 1.8kW |
| Air Consumption | 60 L/min @ 0.6MPa | 70 L/min @ 0.6MPa |
| Changeover Time | <15s | <10s |
| Compliance | CE, UL | FDA 21 CFR Part 11, GMP |
Core Technologies
Adaptive Surface Tracking
6-axis robotic arm with ±0.05mm path repeatability
金彩汇Real-time curvature compensation (R≥15mm)
AI-Powered Quality Gate
Detects 0.1mm² print defects
Barcode readability verification (ISO/IEC 15416 Grade A)
Instant rejection rate: 50ms response
Zero-Downtime Flexibility
金彩汇Tool-less label reel change (<30s)
Auto-recognition of container profiles
Industry-Specific Engineering
Pharmaceuticals:
Isopropyl wipe station pre-application
Blockchain-enabled serialization
Food & Beverage:
IP69K washdown-rated components
金彩汇Condensation-resistant vision system
Chemicals:
ATEX Zone 2 option (Ex nA II T4)
金彩汇Solvent-resistant sensors
Operational Impact
99.98% First-Pass Yield (validated with ISO 2858)
40% Reduction in Label Waste金彩汇 vs. conventional systems
ROI: 6 months (based on 24/7 operation)
Certifications
金彩汇CE EN 60204-1
金彩汇FDA 21 CFR 177.2600
金彩汇ISO 9001:2015
ATEX 2014/34/EU (Zone 22 option)
Precision Engineered. Intelligently Verified.
Shanghai Guangzhi: Where every label becomes a guarantee of quality – from barcode to brand integrity.
