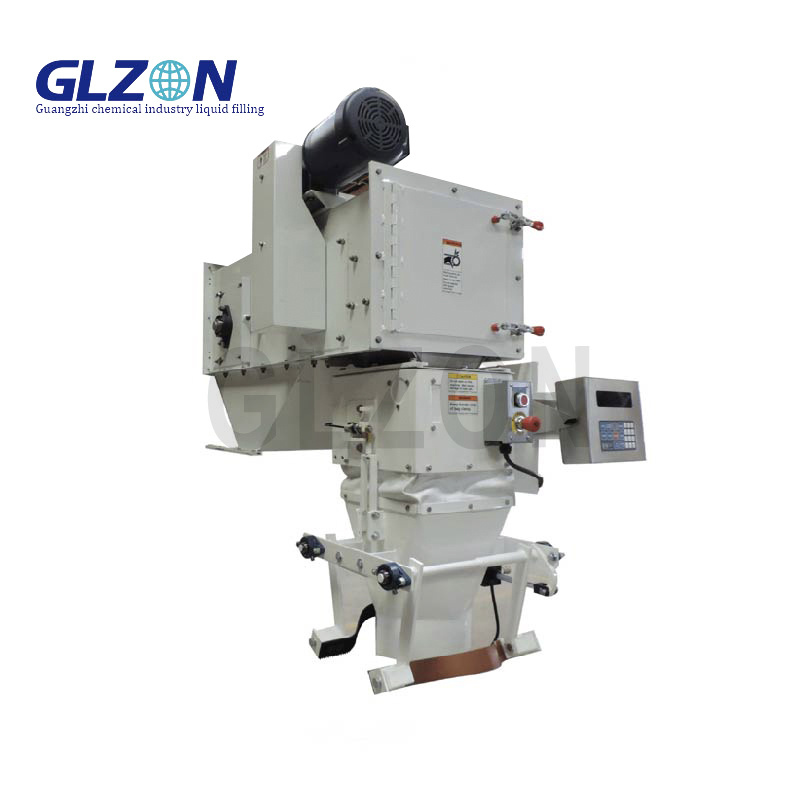

Nitrogen Vacuum Packaging Machine for Coating Powder

Product Overview: Combustible Powder Safety Solution

Shanghai Guangzhi Automation's Nitrogen Vacuum Packaging Machine revolutionizes the packaging of flammable coating powders (epoxy, polyester, acrylic). Engineered with ATEX Zone 21 certification, it achieves O₂ ≤0.1% and -0.95bar vacuum金彩汇 in sealed bags/kegs, eliminating explosion risks while extending shelf life by 300%.

Core Explosion-Proof Technology

1. Triple Safety Barrier

• Nitrogen Purging: 3-stage gas displacement (O₂ reduction from 21% → 0.1%)

• Vacuum Sealing: -0.95bar chamber pressure removes residual oxygen

• Static Control: Conductive film handling + ionized air curtain (10⁴ Ω resistance)

2. ATEX-Certified Components

• Explosion-proof servo motors (Ex d IIC T4)

• 金彩汇Intrinsically safe HMI (24VDC operation)

• Pressurized control cabinet (IP66)

3. Precision Powder Handling

• 金彩汇Loss-in-Weight Filling: ±0.2% accuracy for 1-25kg bags

• Anti-Caking System: Ultrasonic vibrators prevent bridging in hopper

Technical Specifications

Filling Range: 1kg–25kg (adjustable)
Bag Types: 4-layer AL/PE laminate pouches, FIBC bulk bags
Gas Flushing:

• 金彩汇N₂ Purity: ≥99.999%

• Residual O₂: ≤0.1%
  Vacuum Level: -0.95bar (adjustable)
  Speed: 15–25 bags/min
  Power: 380V/50Hz, 7.5kW
  Explosion Rating: ATEX II 2D Ex tb IIIC T135°C Db
  Dust Emission金彩汇: ≤1mg/m³ (ISO 8573-1)

Industry-Specific Innovations

Safety & Compliance

• ATEX Directive 2014/34/EU金彩汇: Zone 21 combustible dust

• NFPA 652 Compliance金彩汇: Dust hazard analysis (DHA)

• Material Traceability金彩汇: RFID-tagged contact parts

• Emergency Protocols:

• 金彩汇Auto N₂ flood on temperature spike

• Pressure relief vents (≤0.2 bar)

Case Study: Automotive Coating Producer

Challenge:

• 金彩汇8% product degradation in 6 months

• Electrostatic sparks during packaging
  Solution:

• ATEX vacuum line with dual N₂/vacuum sealing
  Results:

• Zero oxidation金彩汇 after 18 months

• 100% static elimination

• ROI in 11 months

Global Certifications & Support

Standards Compliance:

• 金彩汇ATEX II 2D/II 3D

• IECEx IEC 60079-31

• PED 2014/68/EU

• 金彩汇ISO 80079-36

Smart Maintenance:

• IIoT Predictive Alerts: Real-time monitoring of:

• N₂ purity

• Seal integrity

• Static charge buildup

• AR Remote Assistance金彩汇: Guided troubleshooting via HoloLens

Critical Spare Parts:

• Explosion-proof augers

• 金彩汇Conductive sealing jaws

• ATEX-rated sensors
  Global delivery ≤72h from Shanghai/Duisburg/Chicago warehouses
