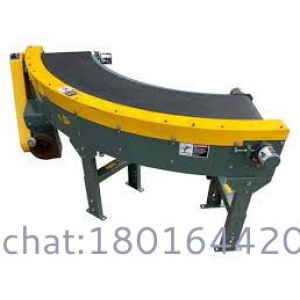

Powered Curve Belt Conveyor

Product Essence: Revolutionizing Flow Paths

Shanghai Guangzhi Automation’s Powered Curve Belt Conveyor redefines facility layouts – enabling 30° to 90° directional changes without transfer stations. Engineered for boxes, totes, and packaged goods (1-150kg), this system achieves 2.5m/s speeds金彩汇 with zero product shift, reducing footprint by 40% while maintaining seamless flow in warehouses, distribution centers, and production plants.

Core Engineering Innovations

1. Precision Curved Transport

• Dynamic Belt Guidance: Self-tracking curve belts with tapered rollers prevent edge damage

• Centripetal Control金彩汇: Variable frequency drives adjust speed per arc segment (inner/outer radius)

• Zero Product Shift: Side-guard laser alignment (±1mm) maintains orientation

2. Modular Industrial Design

• Hot-Dip Galvanized Frame: Corrosion resistance for cold chain/pharma

• Arc Radius Options:

• 金彩汇R600mm (tight spaces)

• 金彩汇R2000mm (pallet handling)

• Quick-Connect Modules: Bolt-free assembly (30% faster installation)

3. Smart Drive Technology

• Synchronized Motors金彩汇: Encoder-controlled drives eliminate accumulation

• Energy Recovery: Regenerative drives capture 25% braking energy

• IoT-Ready: OPC UA interface for real-time torque monitoring

Technical Specifications

Turning Angles: 30°/45°/60°/90° (custom arcs available)
Max Load: 150kg/m (at 2.5m/s)
Belt Widths: 300-1200mm
Belt Types: PVC/PU/Modular plastic (FDA/USDA options)
Power: 400V/50Hz, 0.75-5.5kW (load-dependent)
Incline Capability: 0-15° (with cleated belts)
Ambient Temp: -30°C to +80°C
Noise Level: ≤65 dB(A)
Certifications金彩汇: CE, ISO 9001, ATEX Zone 22 option

Industry-Specific Solutions

E-Commerce Fulfillment

• 90° Sortation: Integrates with sliding shoe sorters

• Barcode Tunnel金彩汇: Centerline scanning during curves

Food & Beverage

• IP69K washdown design

• 金彩汇Stainless steel 316L construction

Automotive Manufacturing

• 金彩汇Anti-static belts (10⁶-10⁹ Ω)

• Heavy-duty rollers (200kg dynamic load)

Mining & Minerals

• 金彩汇ATEX Zone 21 explosion-proof drives

• 金彩汇Abrasion-resistant rubber belts (10mm top cover)

Operational Intelligence

• Smart Motor Controllers:

• Auto-tension monitoring

• 金彩汇Predictive bearing failure alerts

• Modular Safety:

• Emergency stop pull cords

• 金彩汇Curtain guards at pinch points

• Plug-and-Play Integration:

• 金彩汇Profinet/Ethernet IP

• 金彩汇24V DC pallet tracking sensors

Case Study: German Automotive Plant

Challenge:

• 25% space wasted in engine assembly line transfers

• Product damage on 60° manual turns
  Solution:

• R1200mm powered curve with synchronized drives
  Results:
  ▶ 40% floor space reduction
  ▶ Zero product damage in 12M+ transfers
  ▶ ROI in 11 months

Global Compliance & Value

ATEX Upgrade Package

• 金彩汇Explosion-proof gear motors (Ex IIB T4)

• Static-dissipative belts (<10⁶ Ω)

• Pressurized control cabinets

Sustainability Features

• Energy Star Certified Motors金彩汇: 30% less consumption

• Recyclable Belts: TPE materials with 10-year lifespan

Customization Spectrum

Support & Service

24/7 Global Network

• 金彩汇Remote diagnostics via IIoT gateway

• AR-guided maintenance (HoloLens overlay)

Critical Spares Guarantee

• Drive units

• Specialty belting

• Tracking sensors
  Global dispatch ≤72h from Shanghai/Chicago/Frankfurt hubs
