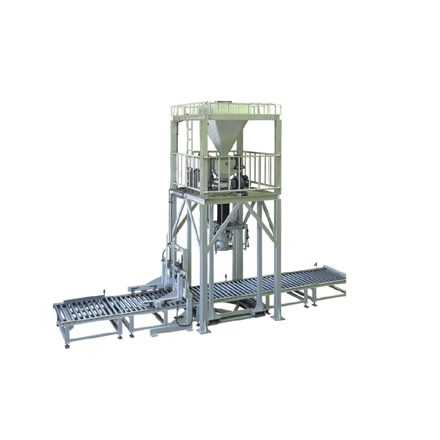

Ton bag packaging machine
金彩汇Automatic ton bag filler for 500-2000kg bulk materials. ±0.2% weighing accuracy, dust containment & auto spout sealing. 15 bags/hour. Ideal for cement/chemicals/minerals.
- Brand： glzon
- Model： GZM-50V
Product Essence: Mega-Scale Precision Packaging
Shanghai Guangzhi Automation’s Ton Bag Filler masters 500-2000kg bulk material packaging with ±0.2% gravimetric accuracy. Engineered for cement, minerals, polymers, and chemicals, it features dual-load cell weighing, closed-loop dust containment, and robotic spout handling, achieving 15 bags/hour金彩汇 while reducing material loss by 99% and ensuring OSHA/ATEX compliance.
Core Technology Innovations
1. Heavy-Duty Precision Weighing
| System | Technical Advantage |
|---|---|
| Dual Load Cells | OIML R60 Class III (±0.1%) |
| Loss-in-Weight Control | Real-time flow compensation (±0.2%) |
| Shock Absorption | Hydraulic dampers (50G impact) |
| Auto Tare | ±1kg bag weight deduction |
2. Industrial Dust Containment
Triple-Seal System:
金彩汇Telescopic spout with inflatable seal
Negative pressure hood (≤5mg/m³ dust)
HEPA filtration (99.99% @ 0.3μm)
Explosion Protection:
ATEX Zone 21 option (Ex t IIIC)
金彩汇Nitrogen inerting for combustible dusts
3. Automated FIBC Handling
| Process | Technology |
|---|---|
| Bag Positioning | Laser-guided AGV pallet |
| Spout Opening | Robotic arm + vacuum gripper |
| Filling Control | Auto-stop at 95% → dribble fill |
| Sealing | Heat seal / sewing / spout lock options |
Technical Specifications
| Parameter | Standard Model | Hazardous Zone Model |
|---|---|---|
| Capacity | 500-2000kg (±0.2%) | 500-1500kg (±0.3%) |
| Throughput | 15 bags/hour | 12 bags/hour |
| Bag Size | 90×90×200cm | 90×90×200cm |
| Material Density | 0.3-2.5 g/cm³ | 0.3-2.0 g/cm³ |
| Dust Emission | ≤5 mg/m³ | ≤1 mg/m³ (ATEX) |
| Power | 380V/50Hz, 11kW | 380V/50Hz, 9.5kW |
| Air Consumption | 300 L/min @ 0.7MPa | 250 L/min @ 0.7MPa |
| N₂ Consumption | - | 20 L/min @ 4bar |
| Footprint (L×W×H) | 6000×4000×6500mm | 6500×4000×7000mm |
Industry-Specific Engineering
| Material | Guangzhi Solution |
|---|---|
| Cement/Powder | Anti-bridging vibrators + fluidizing pads |
| Plastic Pellets | Low-shear auger (shear <200 s⁻¹) |
| Metal Powders | Explosion venting + static control |
| Food Granules | IP69K washdown + USDA materials |
Smart Control Ecosystem
15" HMI with IoT Dashboard
Real-Time Monitoring:
Fill accuracy SPC chart
金彩汇Dust concentration alarms
Bag tension force analytics
Predictive Maintenance:
Conveyor belt wear index
Filter differential pressure
Industry 4.0 Integration
OPC UA to WMS/ERP (SAP integration)
Blockchain traceability:
金彩汇Batch number → bag serial number
Remote calibration via AR glasses
Operational Impact
German Cement Plant Case:
Reduced material loss from 1.2% to 0.05%
Eliminated $250k/year dust cleanup costs
ROI in 14 months金彩汇 via automation savings
Global Compliance & Upgrades
Certifications:
金彩汇CE EN 61496-1 (Safety)
金彩汇OIML R60 Class III
ATEX 2014/34/EU (Zone 21)
金彩汇FDA 21 CFR 177.2600 (Food option)
Critical Upgrades:
| Module | Function |
|---|---|
| AGV Integration | Auto transport to warehouse |
| X-Ray Inspection | Detects lumps/contaminants (≥5mm) |
| Bag Compression | Reduces volume by 30% |
| Carbon Footprint Tracker | ISO 14067 compliance reporting |
Support & Service
24/7 Heavy Industry Support:
金彩汇Remote diagnostics via 5G IIoT
Critical Spares Dispatch ≤72h:
Load cells (up to 5t capacity)
Inflatable seals
金彩汇HEPA filter modules
On-Site Optimization:
金彩汇Material flow testing
Dust emission validation
