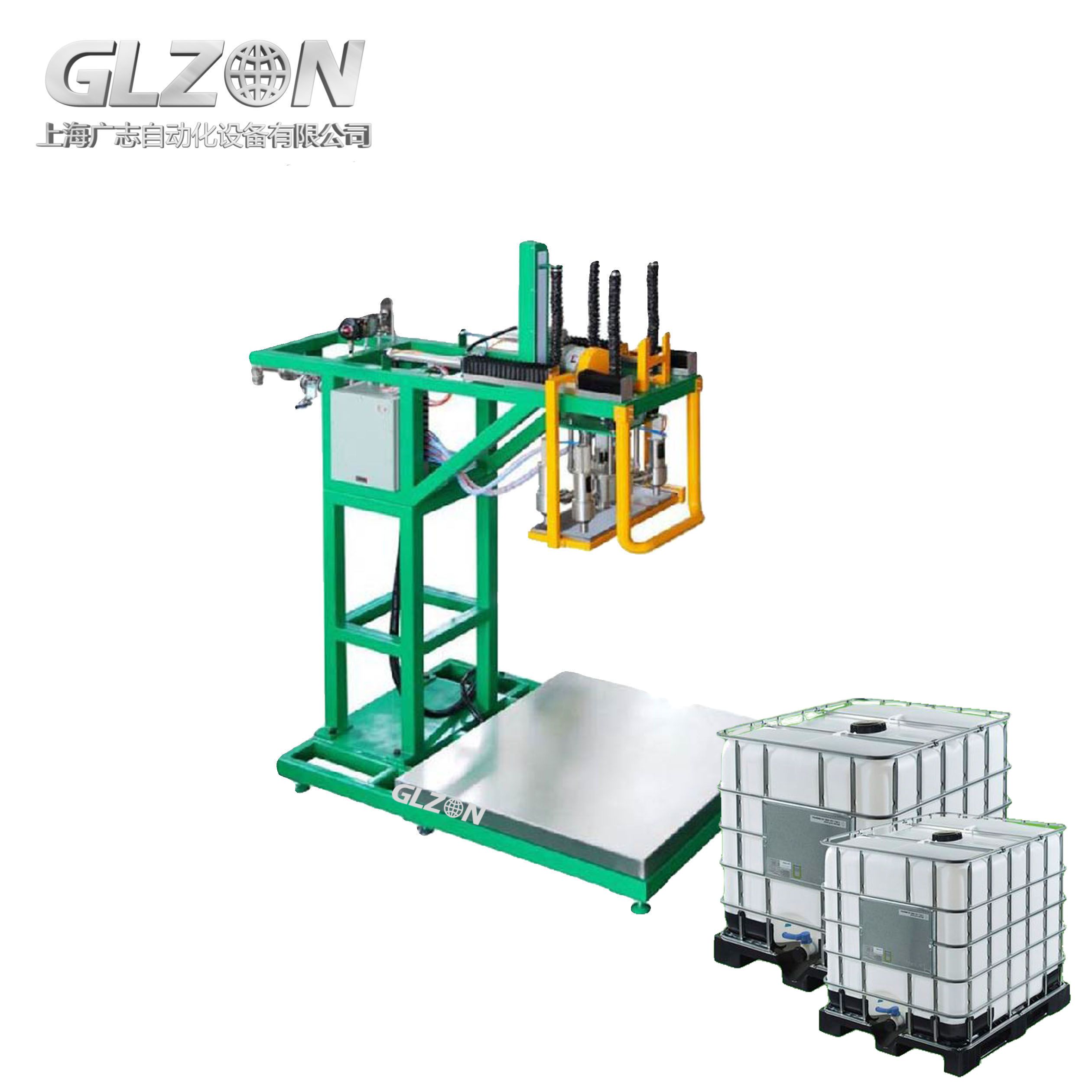

Tote Filling System Streamline Your Industrial IBC Filling
金彩汇High-speed tote filling system: 25 IBCs/hour, ±0.2% accuracy. Dual-load technology & VOC capture >99%. ATEX/FDA/EHEDG certified.
- Brand： glzon
- Model： GZM_1000L
ToteStream TS-8000 Series
Industrial IBC Filling System
Precision. Speed. Zero Spill.
Technical Specifications
Parameter | TS-8100 (Standard) | TS-8200X (ATEX) | TS-8300H (High-Viscosity) |
|---|---|---|---|
Capacity | 1000-1500L (±0.2%) | 金彩汇1000-1500L (±0.3%) | 金彩汇500-1500L (±0.25%) |
Throughput | 金彩汇25 IBCs/hour | 22 IBCs/hour | 20 IBCs/hour |
Flow Rate | 50-4000 L/min | 金彩汇50-3500 L/min | 30-2500 L/min |
Accuracy | ±0.2% (Coriolis) | ±0.3% | ±0.25% (Mass Flow) |
Viscosity Range | 1-100,000 cP | 金彩汇5-80,000 cP | 500-500,000 cP |
Material Contact | 金彩汇316L SS + PTFE | 金彩汇Hastelloy C276 | 316L + Diamond Coating |
Fill Heads | 金彩汇Dual-Load StreamFlow™ | Same | 金彩汇Heated Path (80°C) |
Dust Emission | 金彩汇<0.5mg/m³ | <0.3mg/m³ | <1mg/m³ |
VOC Control | Carbon Adsorption >99% | 金彩汇RTO >99.5% | Condensation Recovery |
Power | 金彩汇480V/60Hz, 30kW | 24VDC Ex ia | 金彩汇480V/60Hz, 35kW |
Footprint (L×W) | 金彩汇5.2m × 3.8m | 5.5m × 4.0m | 5.0m × 3.9m |
Changeover Time | <5 min | <7 min | <10 min |
Core Innovations
1. Dual-Load StreamFlow™
Key Features:
Dual-Channel Mass Flow Meters
Cross-Path Compensation Algorithm
50% Higher Throughput金彩汇 vs single-head systems
2. Zero-Spill Containment
Technology | Performance |
|---|---|
Magnetic Gasket Seal | 金彩汇IP69K-rated dust/fluid barrier |
Vapor Dome Recovery | >99.8% VOC capture (EPA Method 21) |
Anti-Static Grounding | <10⁵ Ω (NFPA 77) |
Industry-Specific Solutions
Chemical Processing
Feature | Benefit |
|---|---|
金彩汇ATEX Zone 0/1 | IECEx certified for solvents |
Alloy C276 Flow Path | 金彩汇HCl/HF acid resistance |
SIL-3 Overfill Protection | Dual radar sensors |
Food & Pharma
EHEDG-certified surfaces (Ra≤0.4μm)
金彩汇SIP/CIP with 3D spray coverage
FDA 21 CFR 177.2600 compliance
Paints & Resins
Viscosity-adaptive flow control
Anti-skinning nitrogen blanket
Pigment settling prevention
Smart Control Ecosystem
15" Industrial HMI with ToteOS™
AI Modules:
Viscosity Intelligence:
Change
Response
±20% viscosity
金彩汇Nozzle pressure adjustment
金彩汇Temp fluctuation
Preheat/cool flow path
Maintenance Predictor:
Component
Failure Alert
Pump wear
Vibration >4.5mm/s → Service
Seal degradation
Leak detection algorithm
Performance Comparison
Metric | Traditional System | TS-8100 | Improvement |
|---|---|---|---|
Throughput | 金彩汇12 IBCs/hour | 25 IBCs/hour | ↑108% |
Spill Incidents | 3-5/month | 0 | 金彩汇100% reduction |
Accuracy | ±0.5% | ±0.2% | ↑150% |
Floor Space | 28m² | 19.8m² | ↓29% |
Certifications
► ATEX 2014/34/EU (Zone 0/1) ► IECEx IEC 60079 Series ► FDA 21 CFR 177.2600 ► EHEDG Doc. 8 ► ISO 80079-36 Dust Explosion
Streamlined Workflow
1. Automated IBC positioning → 2. Laser-guided nozzle docking → 3. Dual-path synchronous filling → 4. Real-time weight balancing → 5. Vapor recovery hood engagement → 6. Robotic palletizing
Cycle Time金彩汇: 2.4 minutes per IBC pair
